V-Band Externally Biased Quadrature Mixer

58 to 62 GHz, DC to 5 GHz IF, +10 dBm LO Power, WR-15 Waveguide
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SFQ-50375313-1515KF-N1-M as an alternative solution. Read more about Limited Run Products here.

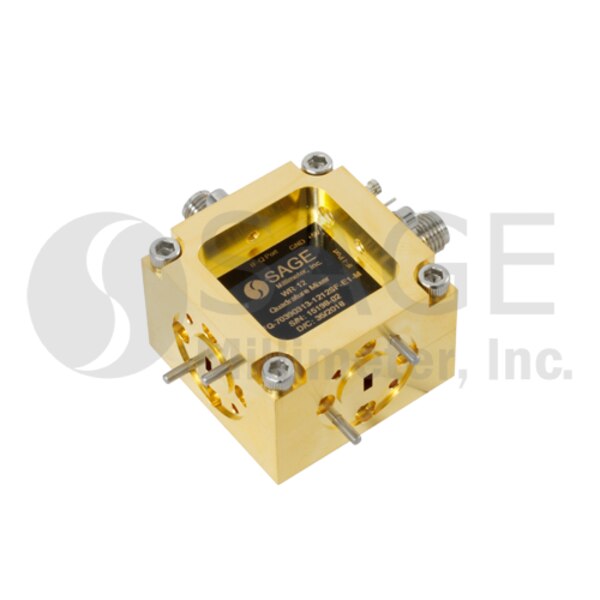

SFQ-58362310-1515SF-E1-M is an V Band quadrature mixer that covers the frequency range of 58 to 62 GHz. The typical conversion loss of the quadrature mixer is 10 dB with an LO driving power of +10 dBm. The typical LO to RF port isolation is 40 dB. Since the IF port of the quadrature mixer is DC coupled, the mixer can be used as a phase detector. In addition, the mixer can be readily configured into an image rejection mixer or single sideband modulator by adding an external IF quadrature coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency58 GHz
Maximum RF Frequency62 GHz
Minimum LO Frequency58 GHz
Maximum LO Frequency62 GHz
Minimum IF FrequencyDC
Maximum IF Frequency5 GHz
LO Pumping Power+10 dBm
Conversion Loss10 dB
RF PortWR-15 Waveguide
