V-Band Reflective SPDT PIN Diode Switch

55 to 71 GHz, 25 dB Isolation, WR-15 Waveguide
SKU:SKD-5537132725-1515-R1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

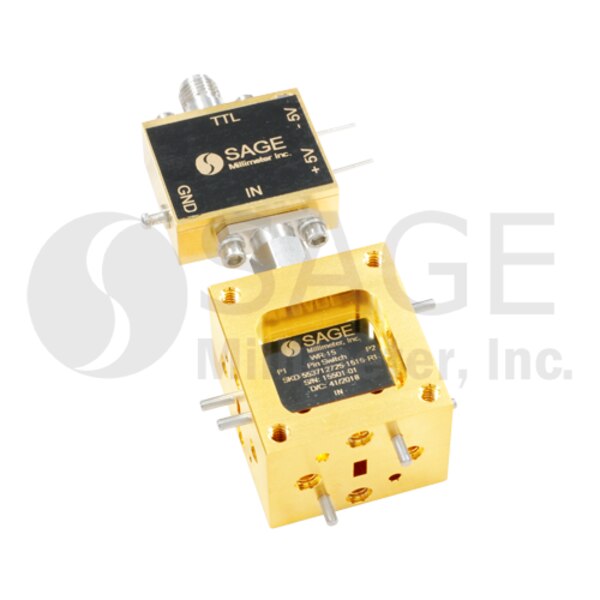

SKD-5537132725-1515-R1 a PIN diode based, single pole, double throw (SPDT) switch with a TTL driver that operates from 55 to 71GHz. This model has an insertion loss of 2.7 dB typical and an isolation of 25 dB nominal at its center frequency. The SPDT switch features WR-15 waveguides with UG-385/U flanges at the RF input and output and a female SMA connector for TTL control on the driver. The switch can be modified for various operational frequencies under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$3,650.00
3 - 4$3,467.50
5 +$3,294.13

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency55 GHz
Maximum Frequency71 GHz
Insertion Loss2.7 dB
Isolation25 dB
Power Handling+20 dBm
Bias±5 VDC/50 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-15 Waveguide
