4-Way In-line Power Divider, Product Discontinued

55 to 65 GHz, 25 dB High Port Isolation, WR-15 Waveguide, V-Band
SKU:SWP-55365304-15-E2
This product has been improved and is now listed as SWP-50375304-15-E1. Read more about Limited Run Products here.

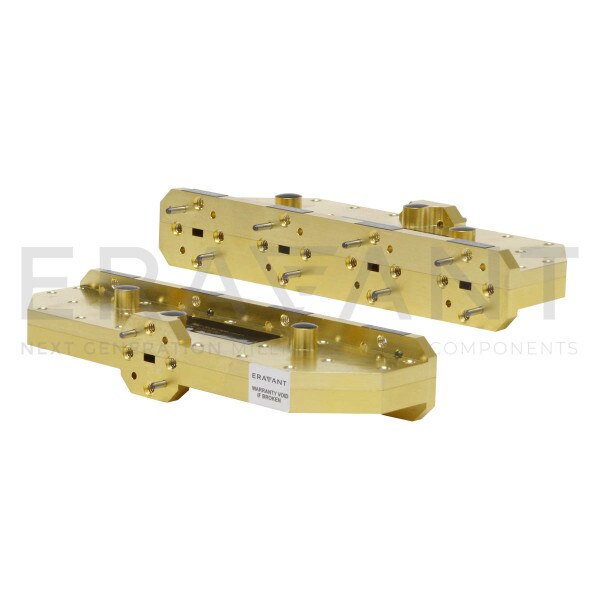

SWP-55365304-15-E2 is a V-band, 4-way waveguide power divider with a 25 dB typical high port isolation and a nominal insertion loss of 1.0 dB at each output port. The ports are well balanced and in phase for either power dividing or power combining applications across the frequency range of 55 GHz to 65 GHz. This power divider comes as an in-line configuration with WR-15 waveguides and UG-385/U flanges at the input and all outputs.
ECCN: EAR99
Login to view pricing

Technical Details

Minimum Frequency55 GHz
Maximum Frequency65 GHz
Insertion Loss1.0 dB
Port Isolation25 dB
Amplitude Imbalance±0.4 dB
Port VSWR-
Power Division4 Way
ConfigurationIn-line (180°)
Input/Output PortsWR-15 WG
