4-Way In-line Power Divider

50 to 65 GHz, 20 dB Port Isolation, WR-15 Waveguide, V-Band
SKU:SWP-50375304-15-E1
Availability:6 to 8 Weeks ARO

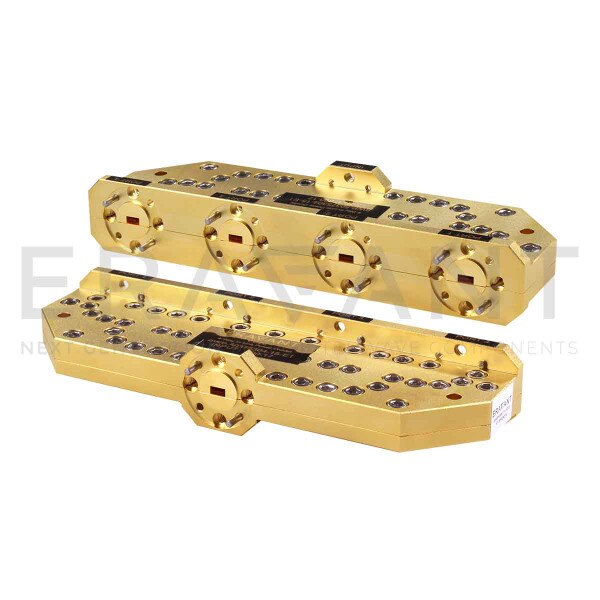

SWP-50375304-15-E1 is a V band, 4-way waveguide power divider that operates across the frequency range of 50 to 65 GHz. The power divider offers a typical insertion loss of 1.0 dB at each output port and a typical adjacent port isolation of 15 dB and non-adjacent port isolation of 20 dB. The ports are well balanced and in phase for either power dividing or power combining applications across the full band. This model comes as an inline design with WR-15 waveguides and UG-385/U anti-cocking flanges. Other configurations are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,550.00
5 - 9$1,395.00
10 - 24$1,255.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency65 GHz
Insertion Loss1.0 dB
Port Isolation20 dB
Amplitude Imbalance±0.2 dB
Port Return Loss15 dB
Power Division4 Way
ConfigurationIn-line (180°)
Input/Output PortsWR-15 WG
