V-Band Balanced Mixer

50 to 75 GHz RF, 40 to 60 GHz LO, DC to 35 GHz IF, +13 dBm LO Power, WR-15 Waveguide, WR-19 LO Port
SKU:SFB-50375315-1519KF-N1
Availability:1 Week ARO

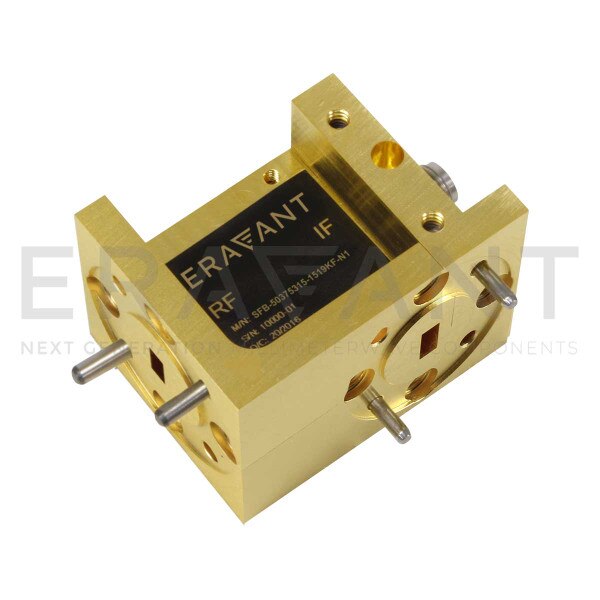

SFB-50375315-1519KF-N1 is a V-band balanced mixer with U band LO port that utilizes high performance GaAs Schottky beam-lead diodes and a balanced circuit configuration to offer superior RF performance. With an RF frequency of 50 to 75 GHz and an LO frequency of 40 to 60 GHz, the mixer supports the full waveguide band operation for both ports. The mixer also offers an extremely broad IF bandwidth from DC to 35 GHz, a conversion loss of 15 dB typical and a high RF to LO port isolation of 30 dB, respectively. The RF port is the mixer is a WR-15 waveguide with UG385/U flange and LO port is WR-19 waveguide with UG-383/U-M flange to accommodate low LO frequency operation.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$3,600.00
3 - 4$3,420.00
5 - 9$3,249.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum RF Frequency50 GHz
Maximum RF Frequency75 GHz
Minimum LO Frequency40 GHz
Maximum LO Frequency60 GHz
Minimum IF FrequencyDC
Maximum IF Frequency35 GHz
LO Pumping Power+13 dBm
RF PortWR-15 Waveguide
