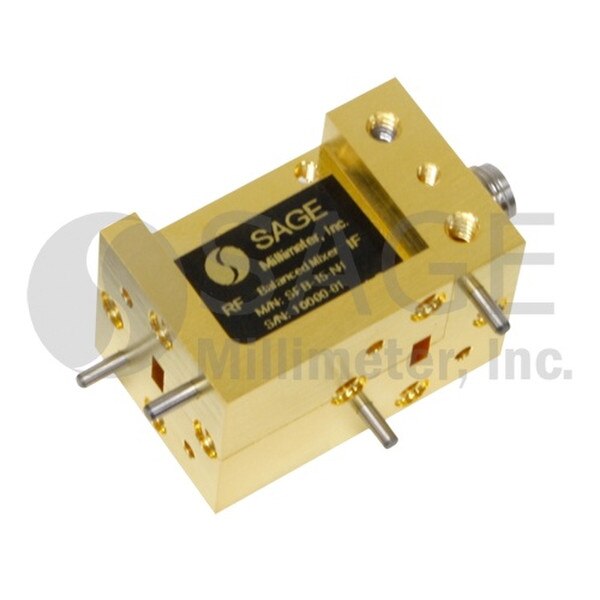

V-Band Balanced Upconverter

50 to 75 GHz, DC to 25 GHz IF, +13 dBm LO Power, WR-15 Waveguide
SKU:SFU-15-N1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFU-15-N1 is a V-Band balanced upconverter that utilizes high performance GaAs Schottky beam-lead diodes and a balanced circuit configuration to offer superior RF performance. The upconverter supports the full waveguide band operation for both LO and RF frequencies from 50 to 75 GHz with an extremely broad IF output from DC to 25 GHz. The upconverter offers a conversion loss of 9 dB typical and a high RF to LO port isolation of 30 dB.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency50 GHz
Maximum RF Frequency75 GHz
Minimum LO Frequency50 GHz
Maximum LO Frequency75 GHz
Minimum IF FrequencyDC
Maximum IF Frequency25 GHz
LO Pumping Power+13 dBm
Conversion Loss9 dB
RF PortWR-15 Waveguide
