X4 Frequency Extender

50 to 75 GHz, +16 dBm Adjustable Output Power, WR-15 Waveguide, V-Band
SKU:STE-SF415-S1

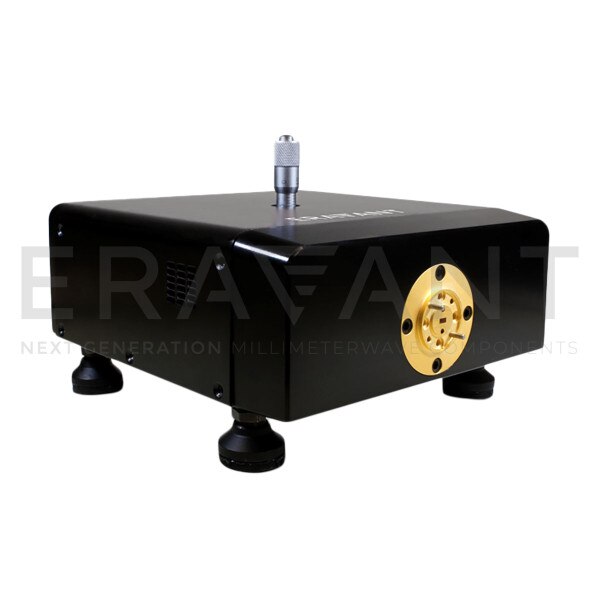

STE-SF415-S1 is a high output power V-Band X4 frequency extender that uses an input frequency range of 12.5 to 18.75 GHz at +5 dBm along with harmonic generation and filtering to produce a 50 to 75 GHz RF signal. The extender features an adjustable attenuator for output power control. The extender is designed and manufactured as a bench top unit to extend the low frequency synthesizer or sweeper without losing all of the functionalities and features. The extender also features adjustable legs, which can also be removed, to allow for an easy test set up.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency50 GHz
Maximum Output Frequency75 GHz
Output Power+16 dBm
Minimum Input Frequency12.50 GHz
Maximum Input Frequency18.75 GHz
Input Power+5 dBm
Power Supply100 VAC to 240 VAC
Output PortWR-15 Waveguide
Input Port2.92 (F)
