WR-15 Waveguide Detector

50 to 75 GHz, 1000 mV/mW Sensitivity, Positive Polarity, V-Band
SKU:STD-15SF-PI
Availability:1 Week ARO

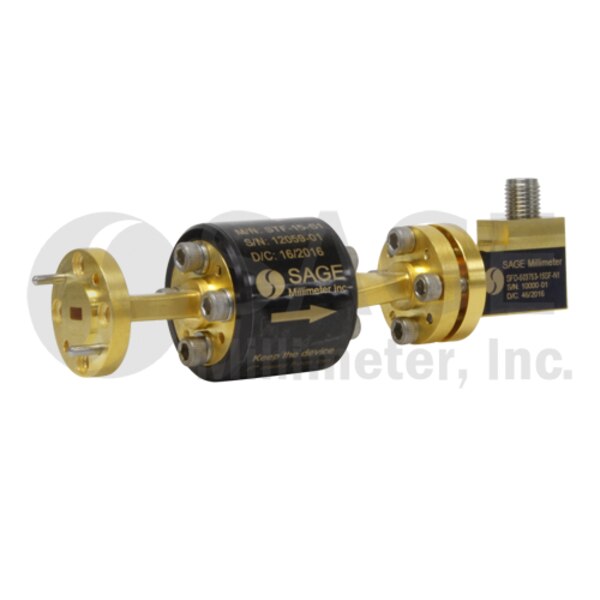

STD-15SF-PI is a V Band waveguide detector that covers the frequency range of 50 to 75 GHz. The detector is zero biased and intended for small signal detection and network analyzer applications. Due to the proprietary circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm. The Faraday isolator is integrated to improve the input port return loss.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$2,500.00
3 - 4$2,250.00
5 +$2,025.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Sensitivity1000 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Return Loss15 dB
Output Voltage PolarityPositive
RF PortWR-15 Waveguide
