G-Band Gaussian Optics Antenna

45 dBi Gain, 140 to 220 GHz, 6" Diameter Lens, 0.059" Dia Circular Waveguide
SKU:SAG-1442244501-059-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

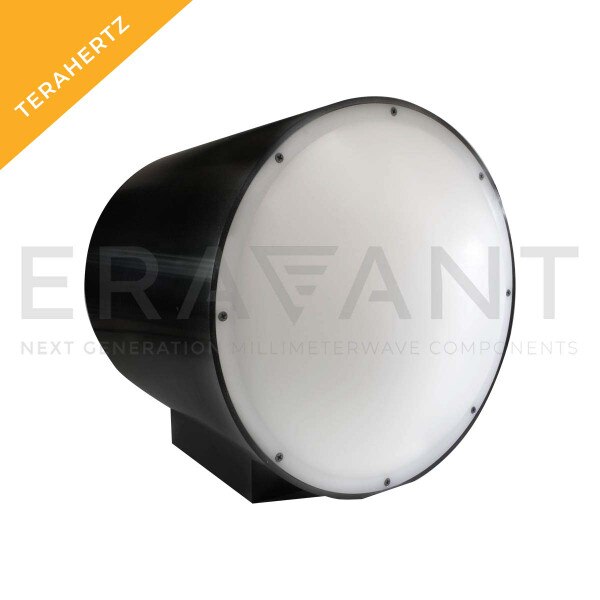

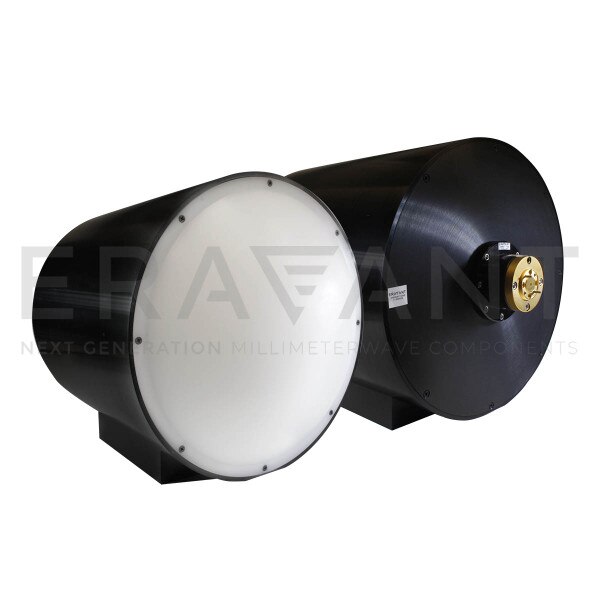

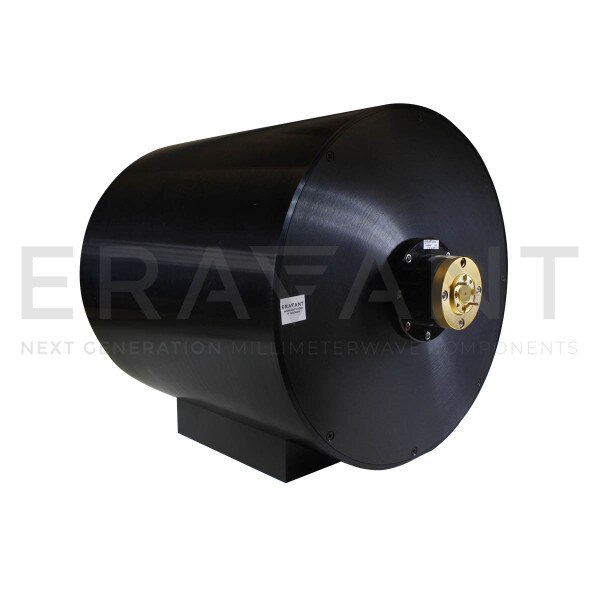

SAG-1442244501-059-S1 is a 6.0” (Ø) G-band Gaussian antenna that operates from 140 to 220 GHz. The Gaussian antenna delivers a 45 dBi nominal gain and 1 degree half power beamwidth. The antenna supports linear and circular polarized waveforms and employs a corrugated feed horn to offer excellent aperture efficiency, high cross polarization rejections, and low sidelobe levels. This model is equipped with a standard 0.059” diameter circular waveguide and UG-387/U-M anti-cocking flange as its input port. By adding a mode transition, Eravant model number SWT-05059-SB, the input port becomes a standard WR-05 waveguide, which can only support linear polarized waveforms.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $5,328.00
3 - 4 $4,795.20
5 - 9 $4,315.68

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Gain45 dBi
3 dB Beamwidth1.0°
Return Loss15 dB
PolarizationLinear and Circular
Antenna Port0.059" Dia Circular WG
Lens Diameter6.0"
