Q-Band Junction Isolator

43 to 46 GHz, 18 dB Isolation, WR-22 Waveguide, UG-599/U Flange
SKU:SNW-4334630518-22-IJ-599
Availability:IN STOCKPlease contact us if you need more units than what is available online.

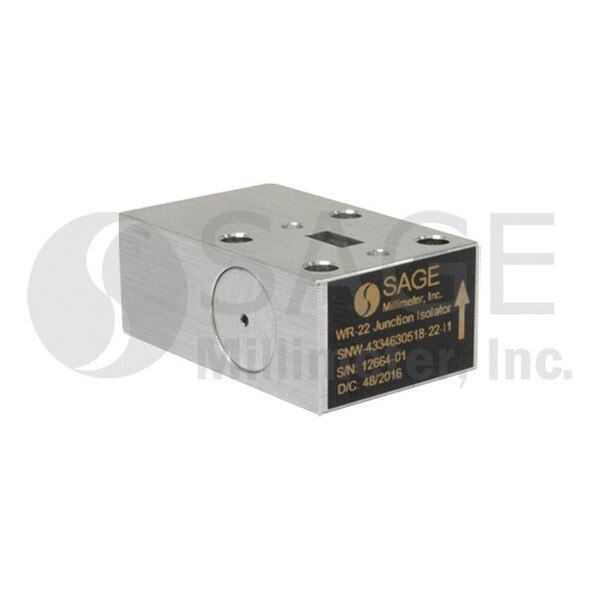

SNW-4334630518-22-IJ-599 is a Q band waveguide junction isolator that covers the frequency range of 43 to 46 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers an isolation of 18 dB typical. The input and output ports are WR-22 waveguides with UG-599/U flanges. Various configurations and frequency ranges are offered under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $780.00
10 - 24 $702.00
25 - 49 $631.80

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency43 GHz
Maximum Frequency46 GHz
Insertion Loss0.5 dB
Isolation18 dB
Return Loss17 dB
Forward Power Handling5 W (CW)
Reverse Power Handling-
RF PortWR-22 Waveguide
Device TypeIsolator
