U-Band Power Amplifier with Uni-Guide™

40 to 60 GHz, 15 dB Gain, +19 dBm P1dB, 1.85 mm (F), WR-19 Waveguide
SKU:SBP-4036031519-VF19-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

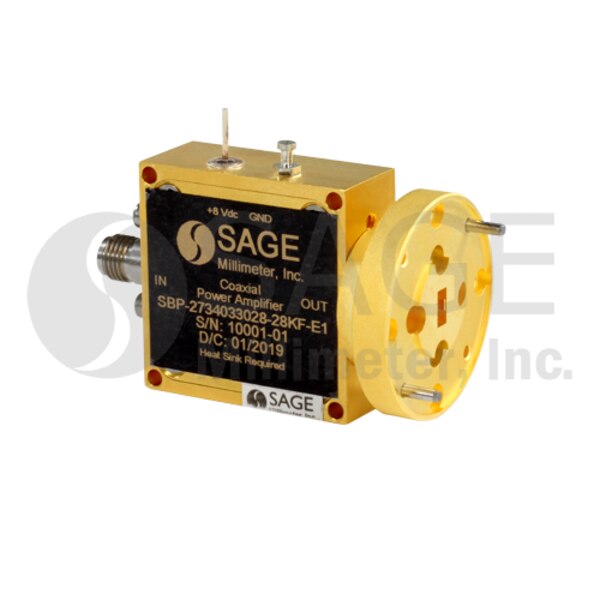

SBP-4036031519-VF19-E1 is a U band power amplifier with a typical small signal gain of 15 dB and a nominal P1dB of +19 dBm in the frequency range of 40 to 60 GHz. The DC power requirement for the amplifier is +8 VDC/300 mA. The mechanical configuration is an inline structure with a V(F) connector as its input port and a WR-19 Uni-Guide™ waveguide as its output port. Other port configurations, such as an in line structure with WR-19 waveguides or 1.85 mm connectors for either the input or output port, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $2,650.00
3 - 4 $2,517.50
5 - 9 $2,391.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Gain15 dB
P1dB+19 dBm
Psat+20 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+8 VDC/300 mA
RF Input/Output1.85 mm (F) Connector/WR-19 Uni-Guide™ Waveguide
