Direct Reading Radar Target Simulator

WR-28, DC to 13.5 GHz I/Q Frequency, 25 dB Carrier Rejection, 20 dB Image Rejection
SKU:STR-353-28-D1

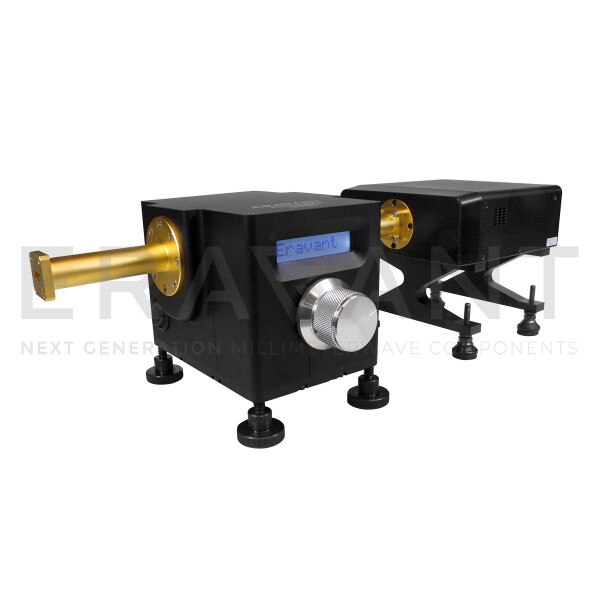

STR-353-28-D1 is a radar doppler simulator that operates from 26.5 to 40 GHz with a WR-28 waveguide input/output. The simulator utilizes a single-sideband-modulator to modulate the incoming signal transmitted by the radar under test and sends back either a higher or lower band signal through a diplexer. The frequency-shifted signal is transmitted back to the radar under test as a Doppler signal. Target characteristics are adjusted by changing the I and Q channel frequency and phase. Siglent’s SDG1032X Waveform Generator or equivalent is recommended. The routing attenuation is adjusted by the direct reading attenuator.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Frequency26.5 to 40 GHz
Carrier Rejection25 dB
Image Rejection20 dB
I/Q Frequency MinimumDC
I/Q Frequency Maximum13.5 GHz
RF PortWR-28 Waveguide
I/Q PortsSMA (F)
