Ka-Band Dual Channel Long Range Speed Sensor Heads

35 GHz,+15 dBm Transmitting Power, 22 dBi Antenna Gain

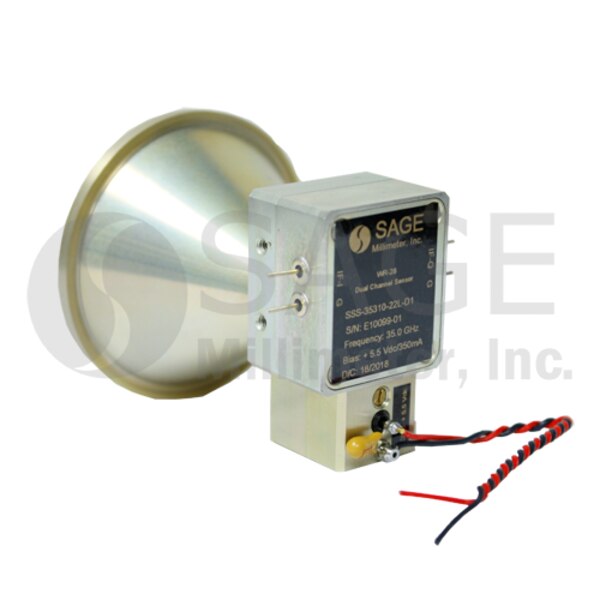

SSS-35315-22L-D1 is Ka Band, lens antenna-based Doppler sensor head that is designed and manufactured for long range measurements of a moving target's speed and direction. The sensor head has a center frequency of 35 GHz and takes a nominal bias of +5.5 VDC/350 mA. The sensor heads are configured with a lens corrected antenna, T/R diplexer, a dual channel (I/Q) receiver and a transmitter/receiver oscillator in an integrated package. Sensor heads with a single receiver are offered under model number SSS-35315-22L-S1 and can only detect the speed of a moving target.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Center Frequency35 GHz
TX Power+15 dBm
Antenna Gain22 dBi
3 dB BW (H x V)12° x 12°
PolarizationRH Circular
DC Bias+5.5 VDC/250 mA
