Ka-Band Single Channel Long Range Speed Sensor Heads

35 GHz,+10 dBm Transmitting Power, 29 dBi Antenna Gain
SKU:SSS-35310-29L-S1
Availability:1 Week ARO

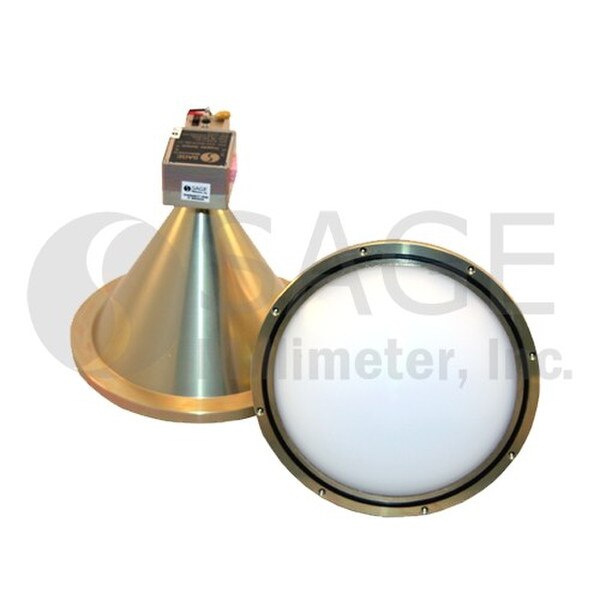

SSS-35310-29L-S1 is a Ka Band, lens antenna-based Doppler sensor head that is designed and manufactured for long range measurements of a moving target's speed. The sensor head has a center frequency of 35 GHz and takes a nominal bias of +5.0 VDC/250 mA. The sensor heads are configured with a lens corrected antenna, T/R diplexer, a single channel receiver and a transmitter/receiver oscillator in an integrated package. Sensor heads with a dual receiver are offered under model number SSS-35310-29L-D1 and can detect both the speed and direction of a moving target.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$700.00
10 - 24$630.00
25 - 49$567.00

Bulk Pricing

Login to View Pricing

Technical Details

RF Center Frequency35 GHz
TX Power+10 dBm
Antenna Gain29 dBi
3 dB BW (H x V)5° x 5°
PolarizationRH Circular
DC Bias+5 VDC/250 mA
ChannelSingle
RangeLong
