Ka-Band Junction Circulator, Wellprice

34.5 to 35.5 GHz, 16 dB Isolation, WR-28 Waveguide
SKU:SNW-3533630616-28-I8-WP
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Wellprice model that may not be offered in the future. Customers who anticipate long-term requirements should consider SNW-3433630320-28-I1 as an alternative solution. Read more about Wellprice Products here.

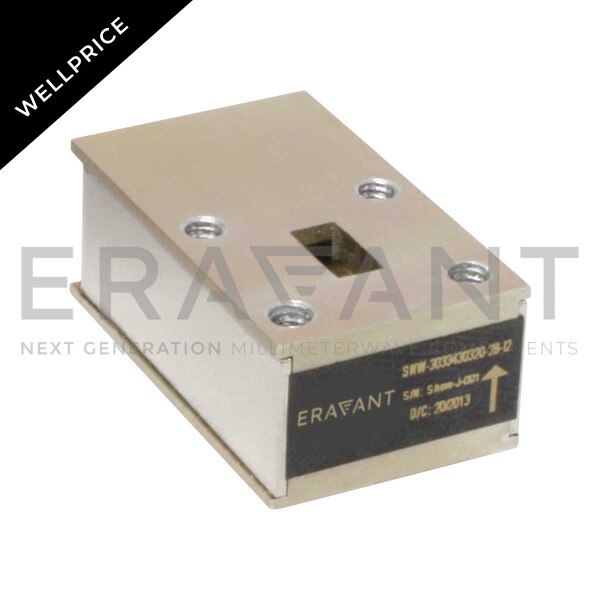

SNW-3533630516-28-I8-WP is a Ka band waveguide junction isolator that covers the frequency range of 34.5 to 35.5 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB typical and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a typical isolation of 16 dB. The input and output ports are WR-28 waveguides with UG-599/U flanges.
ECCN: EAR99
Login to view pricing

Technical Details

Minimum Frequency34.5 GHz
Maximum Frequency35.5 GHz
Insertion Loss0.5 dB
Isolation16 dB
Return Loss15 dB
Forward Power Handling1 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-28 Waveguide
Device TypeIsolator
