Q-Band Low Noise Amplifier

33 to 50 GHz, 30 dB Gain, 4.0 dB Noise Figure, Right Angle 2.4 mm (F), WR-22 Waveguide
SKU:SBL-3335033040-2F22-S1
Availability:1 Week ARO

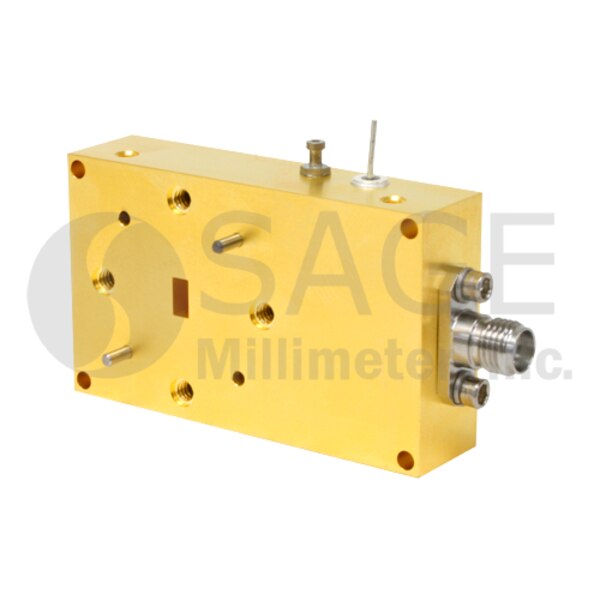

SBL-3335033040-2F22-S1 is a low noise amplifier with a typical small signal gain of 30 dB and a nominal noise figure of 4.0 dB across the frequency range of 33 to 50 GHz. The DC power requirement for the amplifier is +8 VDC/160 mA. The mechanical configuration offers an in line structure with WR-22 waveguides and UG-383/U anti-cocking flanges. Other port configurations, such as an in line structure with WR-22 waveguides or 2.4 mm connectors, are also available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$3,150.00
3 - 4$2,992.50
5 - 9$2,842.88

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Gain30 dB
Noise Figure4.0 dB
P1dB+12 dBm
Input Return Loss10 dB
Output Return Loss7 dB
DC Bias+8 VDC/160 mA
RF Input/Output2.4mm (F) Connector/WR-22 WG
