X2 Active Frequency Multiplier

33 to 50 GHz, +20 dBm Output Power, WR-22 Waveguide, Q-Band
SKU:SFA-222KF-S1
Availability:1 Week ARO

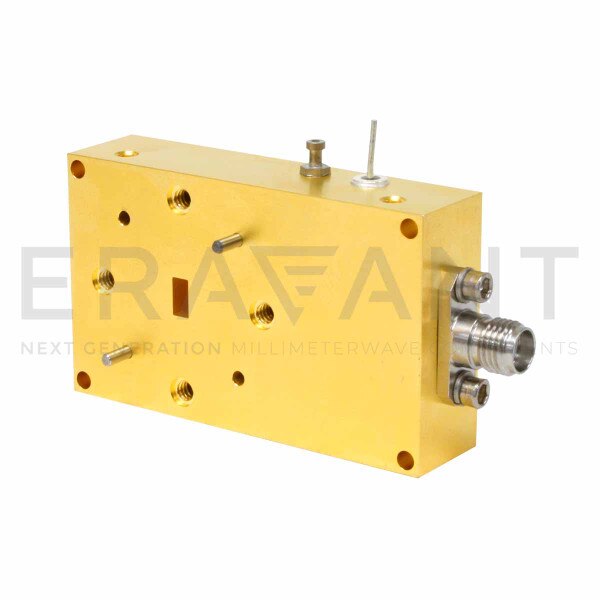

SFA-222KF-S1 is an active X2 frequency multiplier. The multiplier has an input frequency of 16.5 to 25.0 GHz with a typical input power of 0 dBm and an output frequency of 33 to 50 GHz with a typical output power of +20 dBm. The multiplier also has a typical harmonic suppression of -15 dBc. The DC power requirement for the multiplier is +8 VDC/850 mA. The input port configuration is a K connector and the output is a WR-22 waveguide with a UG-383/U flange. Other port configurations are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$3,250.00
3 - 4$3,087.50
5 - 9$2,933.13

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Output Frequency33 GHz
Maximum Output Frequency50 GHz
Output Power+20 dBm
Minimum Input Frequency16.5 GHz
Maximum Input Frequency25 GHz
Input Power0 dBm
DC Bias+8 VDC/850 mA
Output PortWR-22 WG
Input Port2.92 mm (F)
