Specialized Omnidirectional Antenna Mounting Fixture

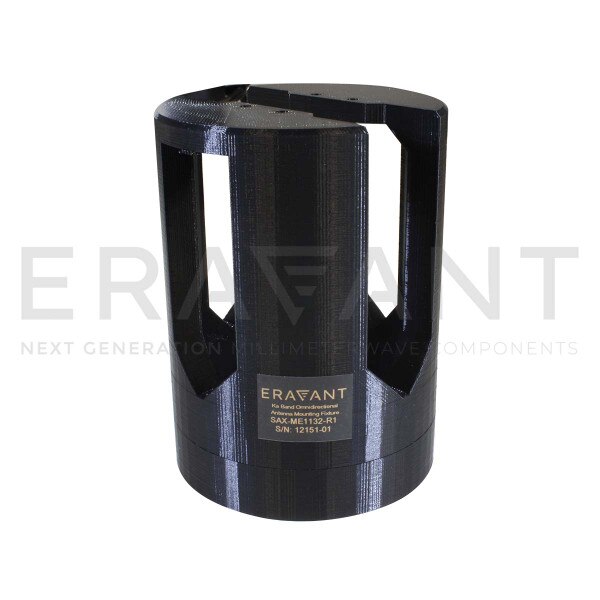

SAX-ME1132-R1 is a 3” diameter mounting fixture designed specifically for mounting the omnidirectional antenna with integrated LNA. It is compatible with SAO-2734031845-KF-C1-BL and SAO-2734033045-KF-C1-BL. The fixture is designed with a removable magnetic base and a standard ¼-20 threaded hole for either a bolt-free mount on a metal surface or on convenient tripod mounting. In addition to magnetic base and tripod mounting, the fixture also features eight 4-40 threaded holes for mounting if the magnetic base is removed. The fixture is designed and fabricated with durable and microwave friendly plastic material to offer minimum reflection.
