Ka-Band Omnidirectional Amplified Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-ODA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-ODA.

CLICK HERE to read more about our antenna measurement capabilities.

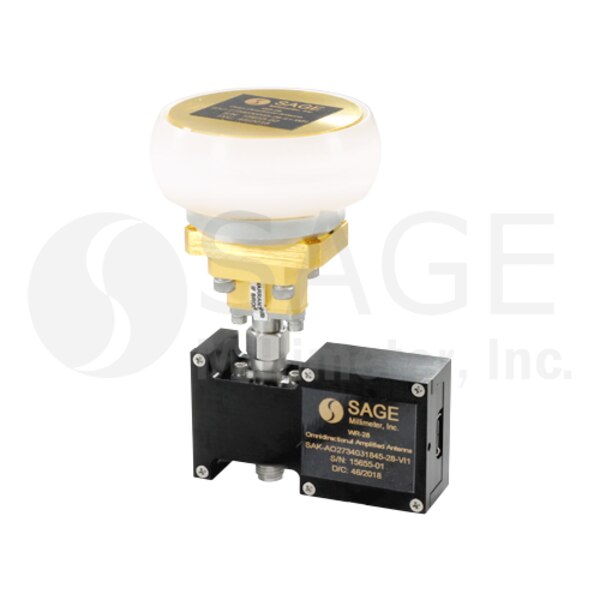

SAO-2734031845-KF-C1-BL is a full band, Ka band Omnidirectional Receiving Antenna equipped with a Low Noise Amplifier. It covers the frequency range of 26.5 to 40 GHz. This vertically polarized antenna offers 360° azimuth coverage with 18 dBi typical gain, of which 3 dBi is from the Antenna and 15 dBi is from the integrated LNA. The antenna features a half power beamwidth of 45 degrees in its vertical direction. The power supply of the LNA can be provided via the USB Type-C port with Locking Screw for supply with a 5V battery pack. The LNA incorporates a DC regulator. The RF port of the antenna is equipped with a 2.92 mm female connector. The Amplified Antenna is built to resist indirect sprays of water.
