Specialized Omnidirectional Antenna Mounting Fixture

3", E-Band
Availability:IN STOCKPlease contact us if you need more units than what is available online.

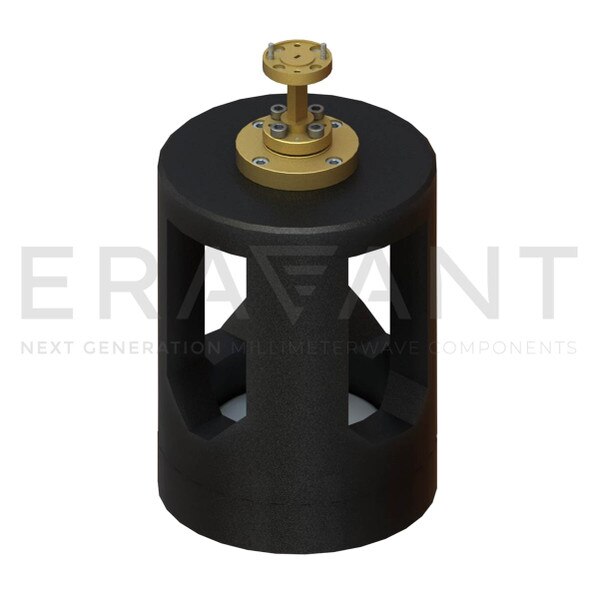

SAX-MEE0750-C1 is a 3” diameter mounting fixture designed specifically for mounting the E Band omnidirectional antenna with UG-387/U flange. It is compatible with SAO-6039030230-12-S1, and SAO-7138630230-12-S1. It features UG-387/U circular flange on top and bottom to allow connection with omni-directional antenna and compatible accessories such as waveguide to coax adapters, waveguide straight, bend and twists etc. The fixture is designed with a removable magnetic base and a standard ¼-20 threaded hole for either a bolt-free mount on a metal surface or on convenient tripod mounting. In addition to magnetic base and tripod mounting, the fixture also features eight 4-40 threaded holes for mounting if the magnetic base is removed. The fixture is designed and fabricated with durable and microwave friendly plastic material to offer minimum reflection.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

FlangeWR-12 WG UG-387/U Flange
