Ka-Band Omnidirectional Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-ODA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-ODA.

CLICK HERE to read more about our antenna measurement capabilities.

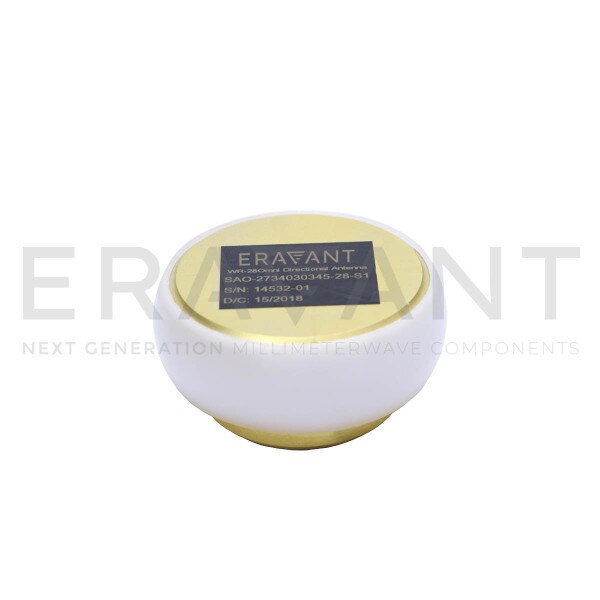

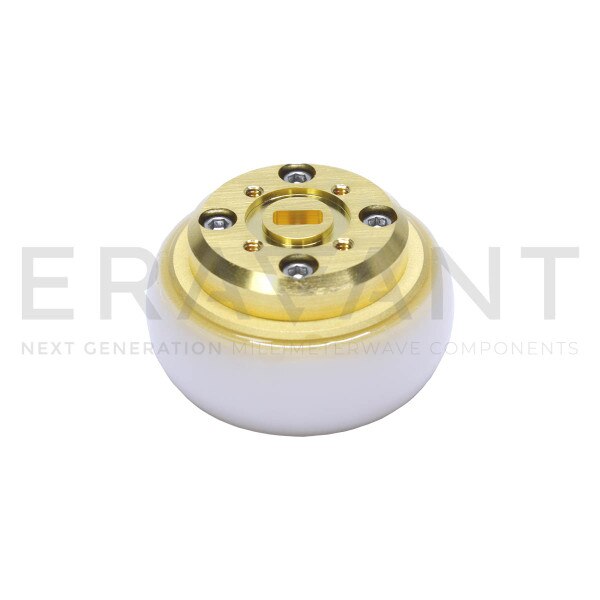

SAO-2734030345-28-S1 is a full band, Ka band omnidirectional antenna that covers the frequency range of 26.5 and 40 GHz. This vertically polarized antenna offers 360 degrees azimuth coverage with a 3 dBi typical gain and ±1 dB nominal gain flatness. The antenna features a half power beamwidth of 45 degrees in its vertical direction. The RF port of the antenna is equipped with WR-28 waveguide with UG-599/U flange. The version with 2.92 mm (F) interface is offered under model number, SAO-2734030345-KF-S1.
