  • Ka-Band Junction Circulator, Product Discontinued

Ka-Band Junction Circulator, Product Discontinued

27 to 29 GHz, 21 dB Isolation, WR-28 Waveguide
This product has been improved and is now listed as SNW-2732930420-28-CE. Read more about Limited Run Products here.

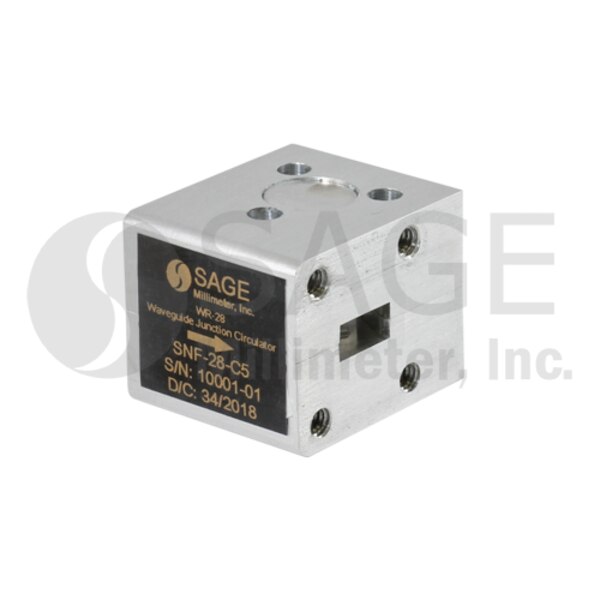

SNW-2732930421-28-C8 is a Ka band waveguide junction circulator that covers the frequency range of 27 to 29 GHz. The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 0.35 dB, a typical isolation of 21 dB, and a much shorter insertion length for system integration. The input and output ports are WR-28 waveguides with UG-599/U compatible flanges. The circulator implements a U-shaped magnet shielding steel cover to protect it from magnetic field interference.
Login to view pricing

Technical Details

Minimum Frequency27 GHz
Maximum Frequency29 GHz
Insertion Loss0.35 dB
Isolation21 dB
Return Loss20 dB
Power Handling15 W (CW)
Reverse Power Handling-
RF PortWR-28 Waveguide
Device TypeCirculator
