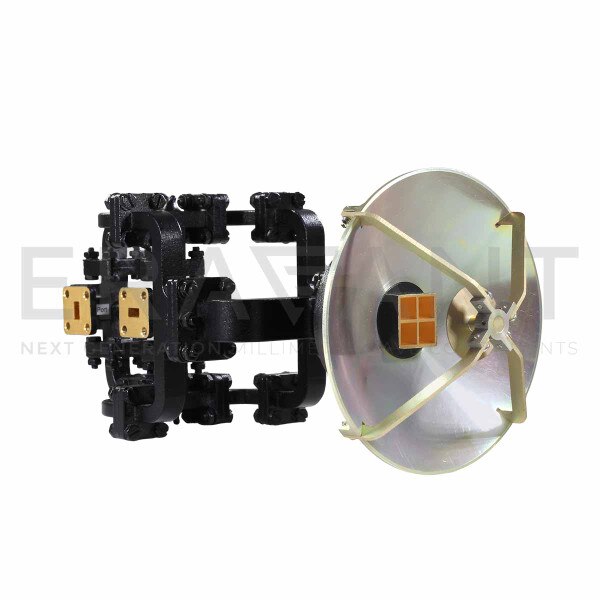

WR-28 Waveguide Monopulse Cassegrain Antenna

27 dBi Gain, 34 to 36 GHz, 4.02" Reflector Diameter, Ka-Band
SKU:SAY-3433632750-28-U5-MP
Availability:8 to 10 Weeks ARO
SAY-3433632750-28-U5-MP is a Monopulse Cassegrain antenna that operates from 34 to 36 GHz, and has a half power beamwidth of 5.0 degrees. The antenna offers a nominal gain of 27 dBi in the Sum Port, and 21 dBi in the H-Port and V-Port. The antenna has three WR-28 waveguides with UG-599/U compatible flanges, which are designated as Sum Port, V-Port, and H-Port. The antenna can support linear polarized waveforms and is designed and manufactured for indoor applications.
ECCN: EAR99
Login to View Pricing

Technical Details

Minimum Frequency34 GHz
Maximum Frequency36 GHz
Gain27 dBi
3 dB Beamwidth5.0°
Return Loss10 dB
PolarizationLinear
Antenna PortWR-28 Waveguide
