WR-28 Slotted Waveguide Array Antenna

27 dBi Gain, 34.75 to 35.25 GHz, Ka-Band, Weather Resistant
SKU:SAW-3533532716-28-L2-WR
Availability:IN STOCKPlease contact us if you need more units than what is available online.

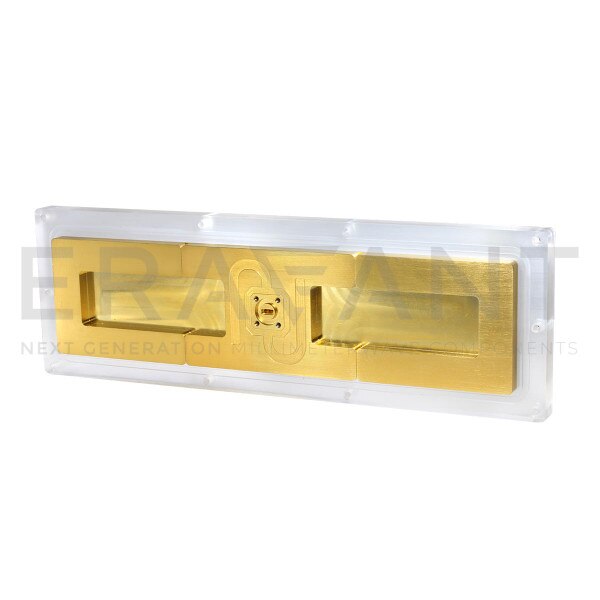

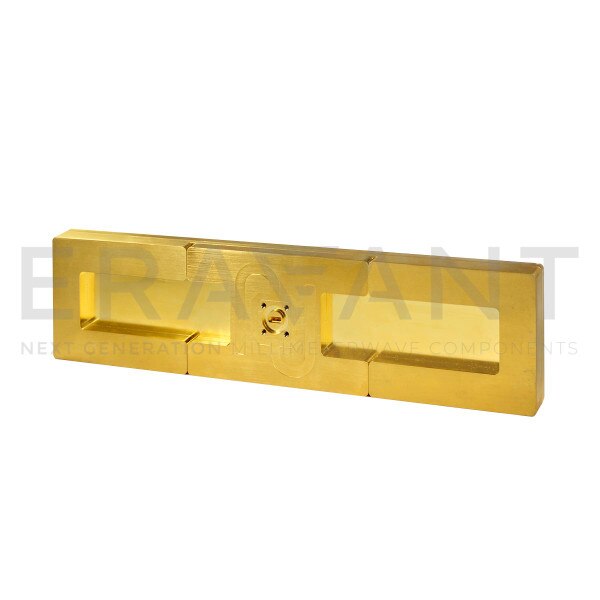

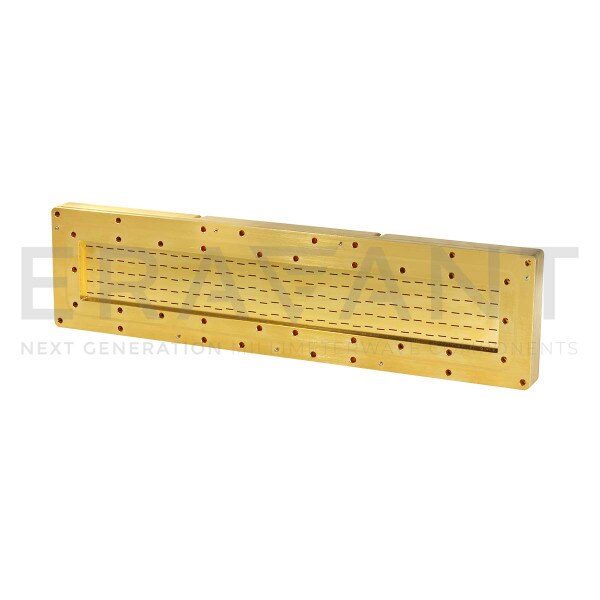

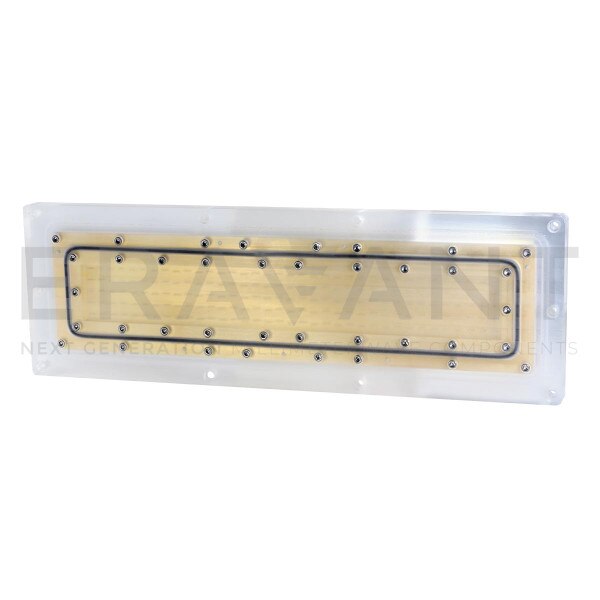

SAW-3533532716-28-L2-WR is a weather resistant Ka-band slotted waveguide array antenna that operates from 34.75 to 35.25 GHz. The antenna offers 27 dBi nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 2 degrees on the H-plane, respectively. Compared to microstrip antennas, the slotted waveguide array antenna offers higher aperture efficiency. The antenna also offers typical side lobes of -15 dB or better and supports linear, vertical polarized waveforms. The input of this antenna is a WR-28 waveguide with UG-599/U flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 $12,400.00
2 $11,780.00
3 - 4$11,191.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency34.75 GHz
Maximum Frequency35.25 GHz
Gain27 dBi
3 dB Beamwidth, Vertical16°
3 dB Beamwidth, Horizontal
Side Lobe Level-15 dB
Return Loss13 dB
PolarizationLinear, Vertical
Antenna PortWR-28 Waveguide
