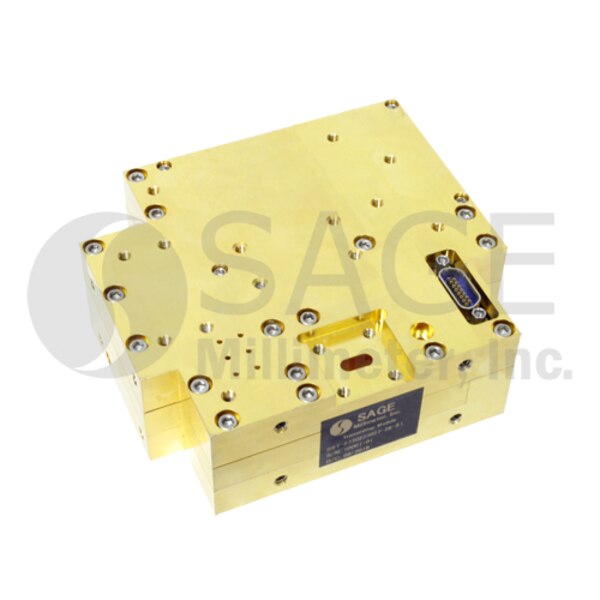

Integrated Transmitter Module Without Antenna

26.8 GHz, 23 dB IF to TX Linear Gain
SKU:SST-2730223027-28-S1-1
Availability:4 to 6 Weeks ARO
SST-2730223027-28-S1-1 is a Ka Band compact transmitter module operating at 26.8 GHz. The module incorporates a phase locked oscillator to convert 1.0 GHz signal to 26.8 GHz signal. A robust filtering system greatly reduces the harmonic and spurious levels, making the module a great choice for ground, ground to air and many other communication applications.
ECCN: EAR99
To view pricing or check order status

Technical Details

SpecificationsTX Frequency: 26.7 to 26.9 GHz
TX Output P1dB: +29 dBm
IF Frequency Range: 0.9 to 1.1 GHz
IF to TX Linear Gain: 23 dB
IF Input VSWR: 1.5:1
Harmonics: -50 dBc
Spurious: -60 dBc
DC Supply Voltage: +8 Vdc/1.5 A
