Ka-Band Noise Figure and Gain Test Extenders

26.5 to 40 GHz, WR-28 Waveguide

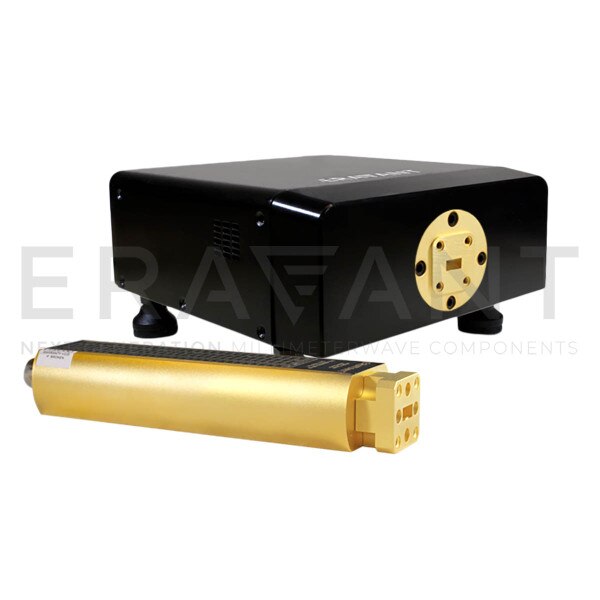

STG-28-S1 is a full Ka-Band noise figure and gain test extender that extends the noise and gain measurement capabilities of common and low frequency signal synthesizers and noise figure meters to the frequency range of 26.5 to 40 GHz. This extender is designed to interface with industry standard noise and gain test systems, such as the Keysight 8970A/B and Y Factor with a spectrum analyzer. It can also interface with most noise and gain analyzers in the 10 MHz to 1.6 GHz frequency range.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency26.5 GHz
Maximum RF Frequency40 GHz
Noise Source ENR15 dB
Down-converter Minimum IF Frequency10 MHz
Down-converter Maximum IF Frequency1.6 GHz
Down-converter Gain20 dB
Down-converter Noise Figure10 dB
Power Supply100 VAC to 240 VAC
RF PortWR-28 Waveguide
