Waveguide Quick Connect

1.125" Circular Flange
SKU:SWH-QC-1125C-R2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

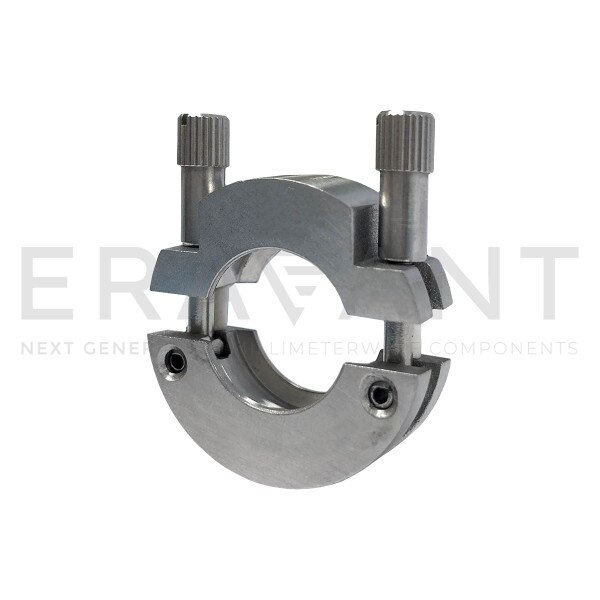

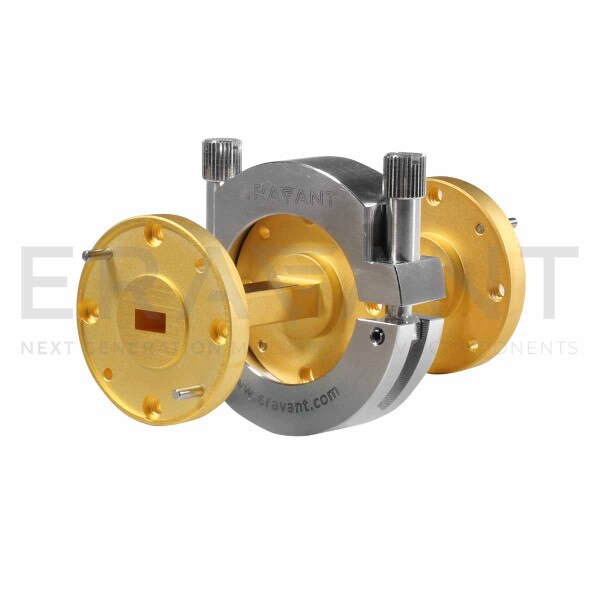

SWH-QC-1125C-R2 is a waveguide quick connect apparatus, which is designed and manufactured primarily for quick connect and disconnect operations, for 1.125" circular flanges. The quick connect allows for the fast mating and clamping of two flanges with an easy turning of the hand screws. It is designed to be used for UG-381/U, UG-383/U, and UG-383/U-M flanges and is intended for lab or sub-assembly use where frequent connects and disconnects are encountered. In addition, it is also designed for sub-assemblies and lab setup where the waveguide flange connections are in a tight space and not enough room is presented for standard waveguide screw connections. Furthermore, the quick connect provides even pressure on the flanges in order to create a perfect connection that reduces signal leakage due to waveguide misalignment. The model for 0.75" circular flanges, such as UG-387/U, UG-387/U-M, and UG-385/U is offered under model number SWH-QC-0750C-R2. In addition, a matched post stand is also offered under model number of SWH-QC-1125C-RS-B for bench top and/or tripod mount applications.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$140.00
25 - 49$126.00
50 +$113.40

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Compatible Flange Type IUG-381/U
Compatible Flange Type IIUG-383/U
Compatible Flange Type IIIUG-383/U-M
FlangeCircular 1.125
