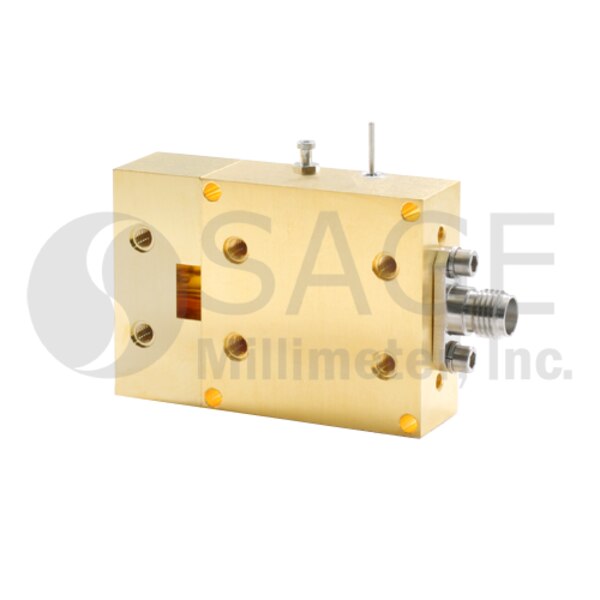

Ka-Band Low Noise Amplifier

26.5 to 40 GHz, 30 dB Gain, 3 dB Noise Figure, 2.92 mm (F), WR-28 Waveguide
SKU:SBL-2634033030-KF28-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SBL-2634033030-KF28-S1 is Ka band low noise amplifier with a typical small signal gain of 30 dB and a nominal noise figure of 3.0 dB across the frequency range of 26.5 to 40 GHz. The DC power requirement for the amplifier is +8 VDC/150 mA. The input port configuration is female K connector and the output port is a WR-28 waveguide with UG-599/U flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $2,150.00
5 - 9 $1,935.00
10 - 24 $1,741.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40.0 GHz
Gain30 dB
Noise Figure3.0 dB
P1dB+10 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+8 VDC/150 mA
RF Input/Output2.92 mm (F)/WR-28 Waveguide
