WR-10 Waveguide Rectangular Horn Antenna

25 dBi Gain, 75 to 110 GHz, W-Band
SKU:SAR-2507-10-S2
Availability:3 Days ARO

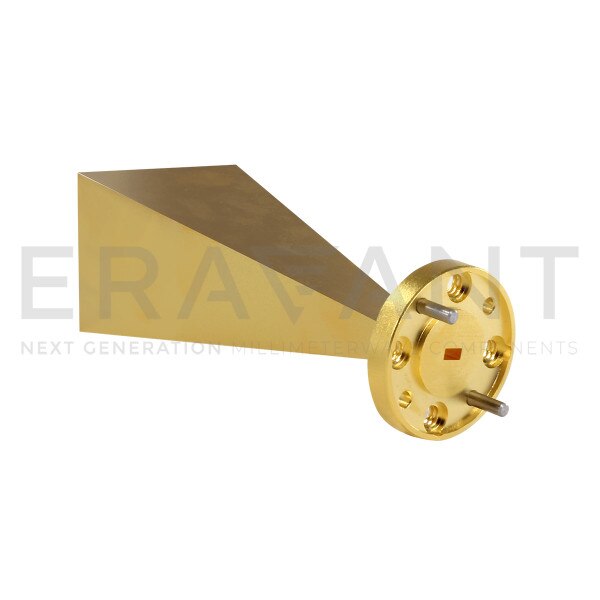

SAR-2507-10-S2 is a W-band pyramidal horn antenna that operates from 75 to 110 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-10 waveguide with UG-387/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$720.00
10 - 24$648.00
25 +$583.20

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
Antenna PortWR-10 Waveguide
