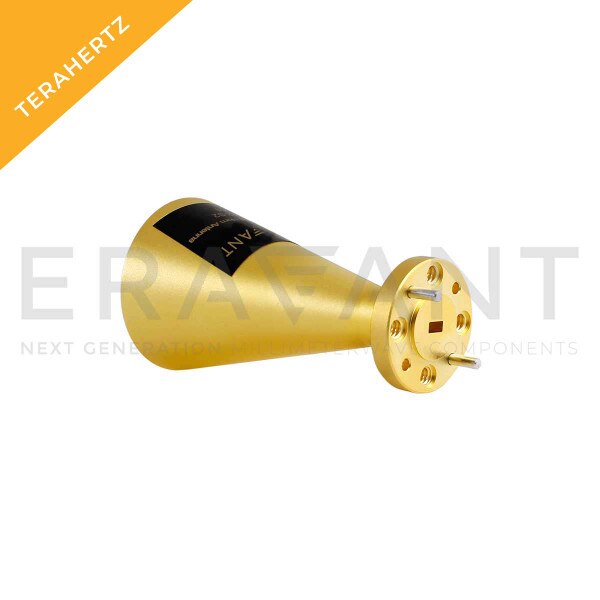

WR-08 Waveguide Conical Horn Antenna

25 dBi Gain, 100 to 112 GHz, F-Band
SKU:SAC-2507-08-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAC-2507-08-S2 is an F-band conical horn antenna that operates from 100 to 112 GHz. The antenna offers 25 dB nominal gain and a typical half powerbeam width of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical sidelobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear polarization. The input of this antenna is a WR-08 waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$720.00
10 - 24$648.00
25 - 49$583.20

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency100 GHz
Maximum Frequency112 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
PolarizationLinear
Antenna PortWR-08 Waveguide
