Ka-Band Orthomode Transducer, Limited Run

This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SAT-343-28028-S1 as an alternative solution. Read more about Limited Run Products here.

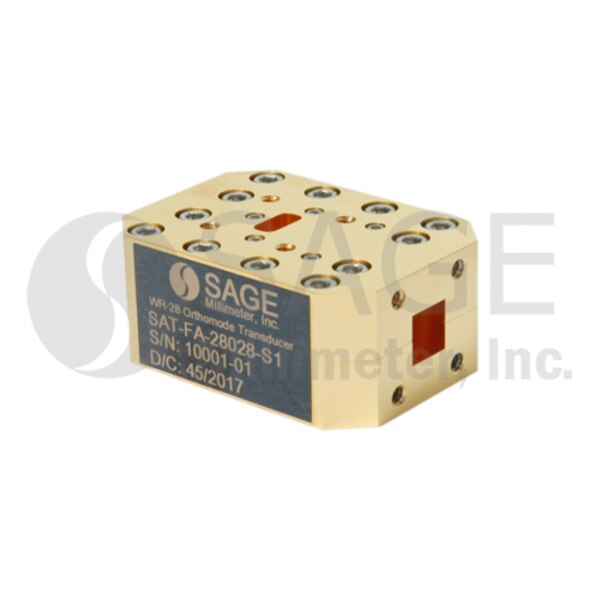

SAT-333-28028-S1 is a WR-28 orthomode transducer (OMT) that operates between 24 and 42 GHz. The OMT separates a circular or elliptical polarized waveform into two linear, orthogonal waveforms or combines two linear polarized waveforms into one circular or elliptical polarized waveform or vice versa. The OMT also supports either vertical or horizontal polarized waveguide forms. The OMT shows high port isolation while providing a low insertion loss. The OMT is configured with a 0.280” x 0.280” square waveguide for the antenna port and two WR-28 waveguides for the horizontal and vertical ports. All ports have standard UG-599/U flanges and 4-40 threaded holes.
