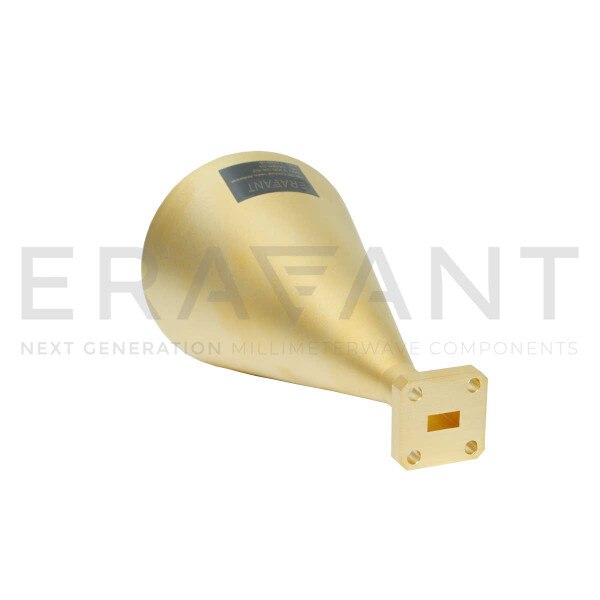

WR-28 Waveguide Conical Horn Antenna

23 dBi Gain, 38.5 to 43 GHz, Ka-Band
SKU:SAC-2309-28-S2
Availability:4 to 6 Weeks ARO
SAC-2309-28-S2 is a Ka-band conical horn antenna that operates from 38.5 to 43 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 9 degrees on both E-plane and H-plane. The horn also offers typical sidelobes of -15 dB on the E-plane and -18 dB on the H-plane. The conical horn can support linear polarization. The input of this antenna is a WR-28 waveguide with UG-599/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$760.00
10 - 24$684.00
25 +$615.60

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency38.5 GHz
Maximum Frequency43 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane
Return Loss20 dB
PolarizationLinear
Antenna PortWR-28 Waveguide
