K-Band Conical Horn Antenna

23 dBi Gain, 17.5 to 20.5 GHz, 0.470" Diameter Circular Waveguide
SKU:SAC-2309-470-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

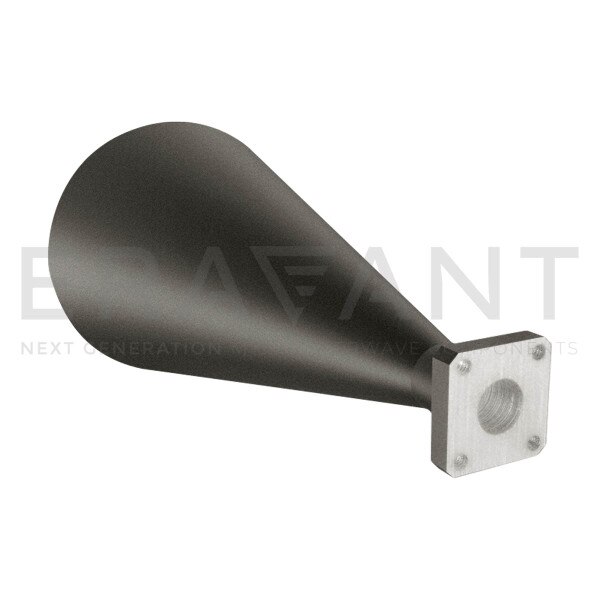

SAC-2309-470-S2 is a K-band conical horn antenna that operates from 17.5 to 20.5 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The antenna port is a 0.470" diameter circular waveguide with UG-595/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$760.00
10 - 24$684.00
25 - 49$615.60

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency17.5 GHz
Maximum Frequency20.5 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane11°
3 dB Beamwidth, H-Plane13°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.470" Dia Circular WG
