WR-06 Waveguide Rectangular Horn Antenna

20 dBi Gain, 110 to 170 GHz, D-Band
SKU:SAR-2013-06-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

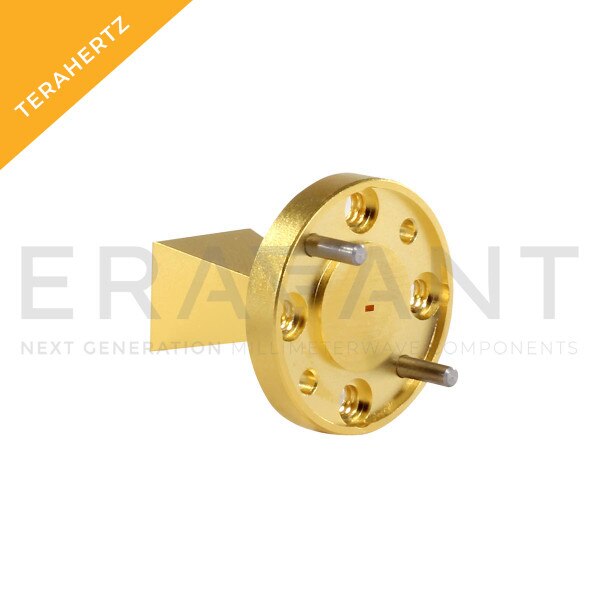

SAR-2013-06-S2 is a D-band pyramidal horn antenna that operates from 110 to 170 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 17 degrees on the E-plane and 18 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-06 waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

QuantityPrice
1 - 9$760.00
10 - 24$684.00
25 +$615.60

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane17°
3 dB Beamwidth, H-Plane18°
Return Loss23 dB
Antenna PortWR-06 Waveguide
