Broadband Reflective SP6T Solid State Switch

2 to 24 GHz, 35 dB Isolation, 2.92 mm (F)
SKU:SK6-0232434035-KFKF-R1
Availability:2 to 4 Weeks ARO

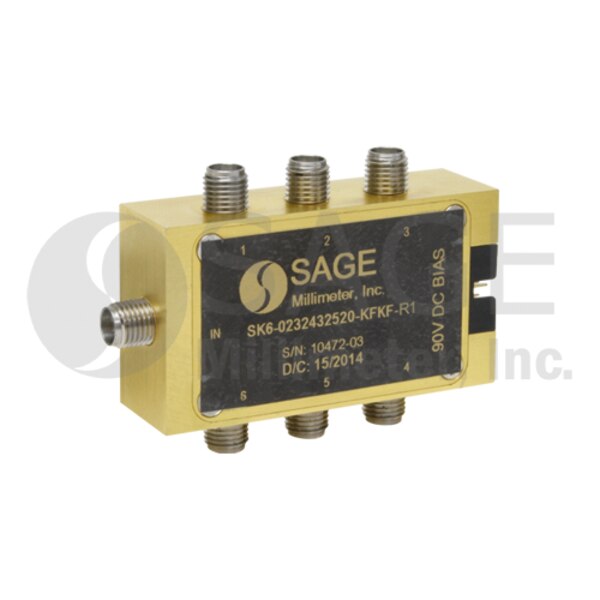

SK6-0232434035-KFKF-R1 is a PIN diode based, reflective single pole, six throw switch with a TTL driver that operates from 2 to 24 GHz. The switch requires a separate -5 V and +5 V biasing in addition to the TTL control. This model offers a small form factor, 4.0 dB typical insertion loss, 35 dB typical isolation, and a switching speed up to 50 microseconds. The switch has female K connectors for all RF ports and a 10-pin male Molex connector for DC biasing and TTL controlling.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$4,650.00
3 - 4$4,417.50
5 - 9$4,196.63

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency2 GHz
Maximum Frequency24 GHz
Insertion Loss4 dB
Isolation35 dB
Power Handling+20 dBm
Bias±5 VDC/100 mA
Switching Speed50 μs
Switch TypeReflective
RF Port2.92 mm (F)
