W-Band Omnidirectional Antenna, Limited Run

This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SAO-7531140230-10-S1 as an alternative solution. Read more about Limited Run Products here.

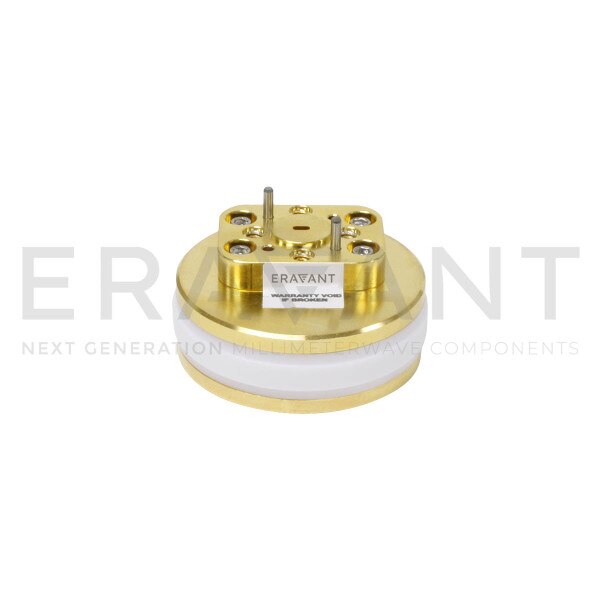

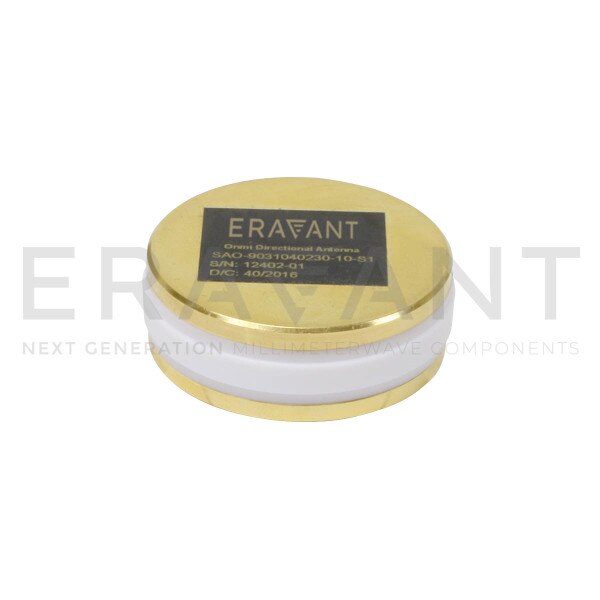

SAO-9031040230-10-S1 is a WR-10 waveguide W-band omnidirectional antenna that operates between 90 and 100 GHz. This vertically polarized antenna offers 360 degree azimuth coverage with 2 dBi gain and ±3 dB gain flatness. The omnidirectional antenna features a half power beamwidth of 30 degrees in the vertical direction.
