X2 Active Frequency Multiplier

190 to 220 GHz, +8 dBm Output Power, In-line WR-05 Waveguide, G-Band

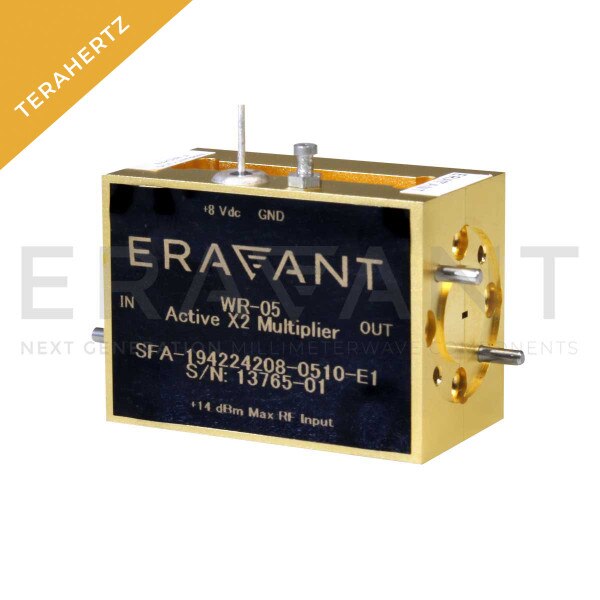

SFA-194224208-0510-E1 is an active X2 frequency multiplier. The multiplier has an input frequency of 95 to 110 GHz with a typical input power of +12 dBm and an output frequency of 190 to 220 GHz with a typical output power of +8 dBm. The DC power requirement for the multiplier is +8 VDC/170 mA. The input port configuration is a WR-10 waveguide with a UG-387/U-M anti-cocking flange and the output is a WR-05 waveguide with a UG-387/U-M anti-cocking flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency190 GHz
Maximum Output Frequency220 GHz
Output Power+8 dBm
Minimum Input Frequency95 GHz
Maximum Input Frequency110 GHz
Input Power+12 dBm
DC Bias+8 VDC/170 mA
Output PortWR-05 WG
Input PortWR-10 WG
