K-Band Junction Isolator

18.6 to 21.4 GHz, 20 dB Isolation, WR-42 Waveguide, Thermal Vacuum Safe
SKU:SNW-1932130420-42-IE-V

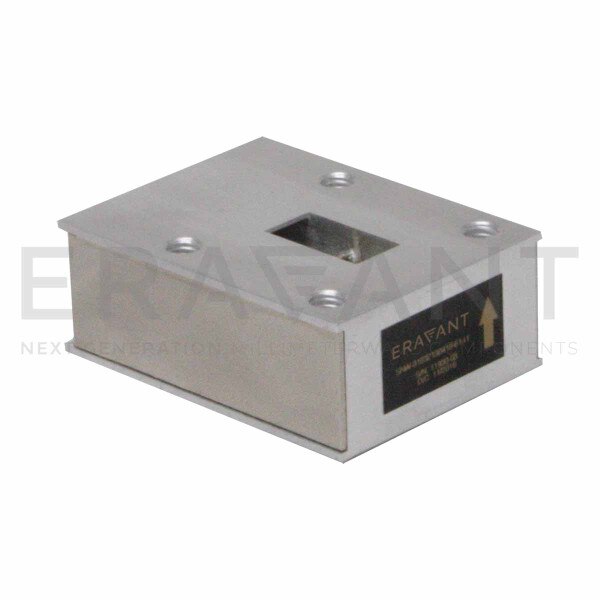

SNW-1932130420-42-IE-V is a K band, TVAC safe waveguide junction isolator that covers the frequency range of 18.6 to 21.4 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator offers a typical insertion loss of 0.4 dB and an isolation of 20 dB, respectively. The isolator is readily for high volume production system integration. The input and output ports are WR-42 waveguides UG-595/U compatible flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $310.00
25 - 49 $279.00
50 - 99 $251.10

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18.6 GHz
Maximum Frequency21.4 GHz
Insertion Loss0.4 dB
Isolation20 dB
Return Loss20 dB
Forward Power Handling10 W (CW)
Reverse Power Handling5 W (CW)
RF PortWR-42 Waveguide
Device TypeIsolator
