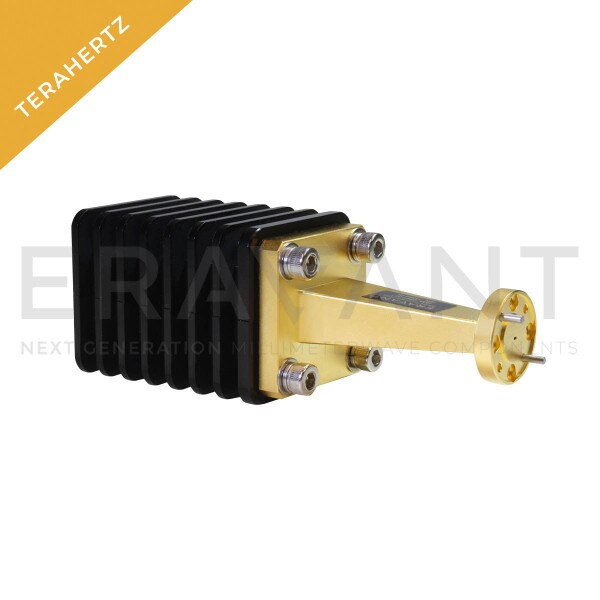

Fixed Termination Load

170 to 260 GHz, 50 W Power Handling, WR-04 Waveguide
SKU:SWL-0447-S1
SWL-0447-S1 is a high power, WR-04 termination load that covers the frequency range of 170 to 260 GHz. The termination load exhibits a typical return loss of 20 dB and 50 Watts power handling capacity. It is designed and manufactured to offer a good match for high power test lab and system applications. Custom levels of power handling are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,450.00
5 - 9 $1,305.00
10 - 24 $1,174.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency170 GHz
Maximum Frequency260 GHz
Power Handling, Watts50 W
Power Handling, dBm47 dBm
Return Loss25 dB
Load TypeFixed
Waveguide PortWR-04 Waveguide
