WR-04 Band Fixed Attenuator, High Precision

170 to 260 GHz, 30 dB, WR-04 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

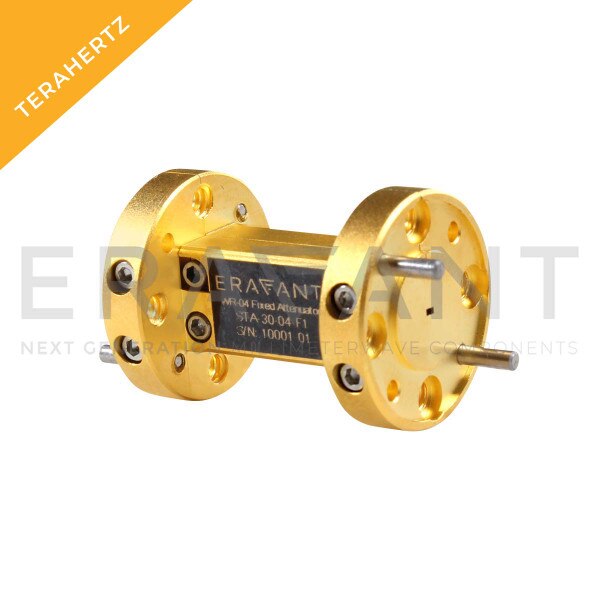

STA-30-04-F1 is a 30 dB fixed attenuator that is used in millimeterwave systems and operates from 170 to 260 GHz. The attenuator has a fixed attenuation value of 30 dB at center frequency, 215 GHz. While the attenuator is designed for full waveguide band applications, the attenuation value does show a minor slope within the band due to its distinct mechanical configuration. Various attenuation values are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency170 GHz
Maximum Frequency260 GHz
Attenuation30 dB @ 215 GHz
Return Loss16 dB
Power Handling100 mW
RF PortWR-04 Waveguide
Attenuator TypeFixed
