Broadband Dual-Polarized Scalar Feed Horn Antenna

15 dBi Gain, 24 to 43.5 GHz, 40 dB Isolation, Broadband
SKU:SAF-2434431535-328-2F2F-R1-280-DP
Availability:4 to 6 Weeks ARO

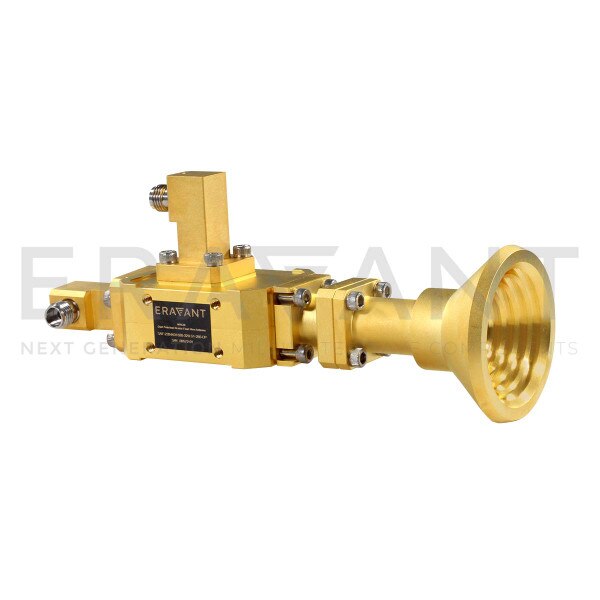

SAF-2434431535-328-2F2F-R1-280-DP is a broadband dual polarized scalar feed horn antenna that covers several popular 5G Frequency Range 2 (FR2) bands from 24 to 43.5 GHz. The antenna features an integrated orthomode transducer (OMT) that provides high port isolation and cross-polarization cancellation and a broad band scalar horn that provides low sidelobe levels. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waveforms or vice versa. The dual polarized horn also supports either vertical or horizontal polarized waveguide forms with 35 dB typical cross polarization rejection. At center frequency, the horn antenna exhibits 15 dBi nominal gain and a typical half power beamwidth of 35 degrees and -25 dB sidelobe levels, respectively. The antenna exhibits 40 dB typical port isolation between the horizontal and vertical ports. All ports are equipped with 2.4mm female coax connectors. The OMT (SAT-343-28028-S1), compact square to circular transition (SWT-280328-SA-C-QC), broadband scalar feed horn (SAF-2234431535-328-S1), and broadband waveguide to coax adapters (SWC-2434431505-282F-R1) can all be purchased separately. Other configurations, such as 2.4mm male connectors, are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $5,300.00
2 $5,035.00
3 - 4 $4,783.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency43.5 GHz
Gain15 dBi
3 dB Beamwidth, E-plane35°
3 dB Beamwidth, H-plane35°
Isolation40 dB
Return Loss (24-26.5 GHz, 42-43.5 GHz)10 dB
Return Loss (26.5-42 GHz)15 dB
Horizontal and Vertical Ports2.4 mm Female
