E-Band Scalar Feed Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR12GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-WR12PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

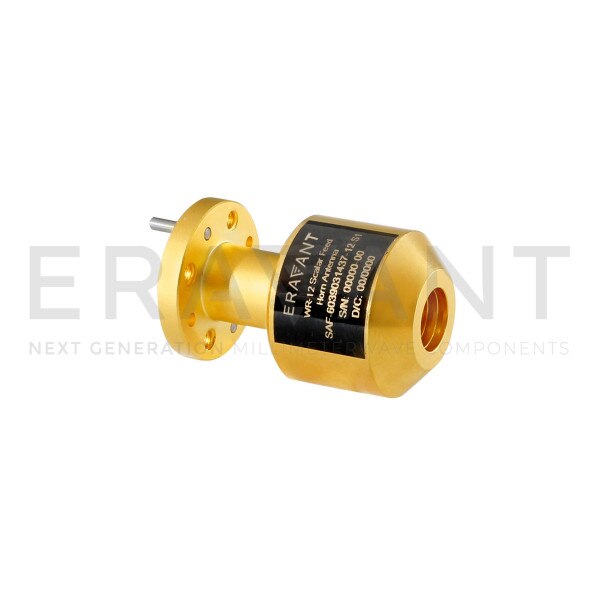

SAF-6039031437-125-S1 is an E-band scalar feed horn antenna that operates from 60 to 90 GHz. The antenna offers a 14 dBi nominal gain, a typical half power beamwidth 37 degrees on the E-Plane and H-Plane. The antenna has sidelobe levels of -25 dB on the E-Plane and H-Plane. The scalar feed horn is equipped with a 0.125" diameter circular waveguide that supports both linear and circular polarization. The model with a WR-12 waveguide interface, which supports linear polarizations, is offered under model number SAF-6039031437-12-S1.
