Broadband Double-Ridged Horn

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0670GAIN-DR.
A 2D pattern measurement test is offered under service number FTA-0670PATT-DR.

CLICK HERE to read more about our antenna measurement capabilities.

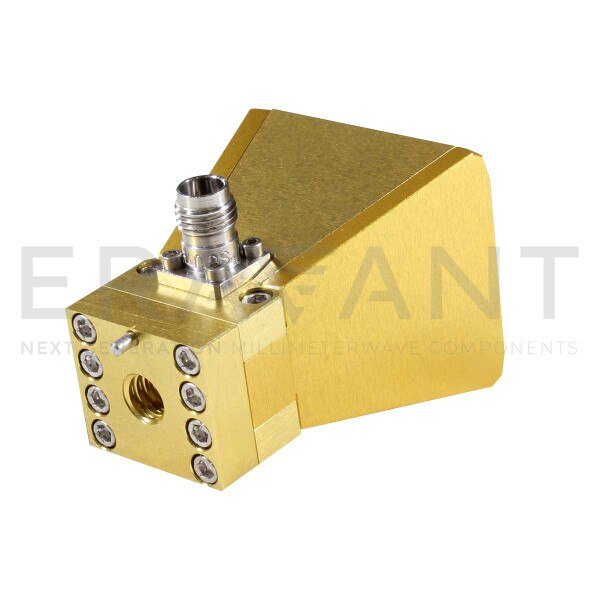

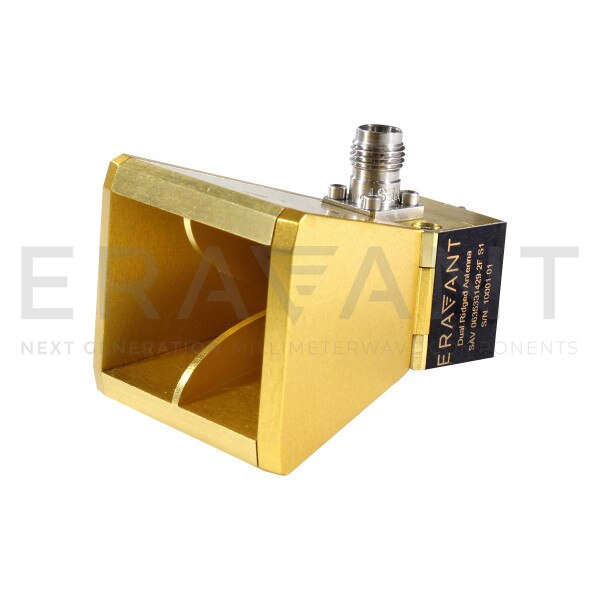

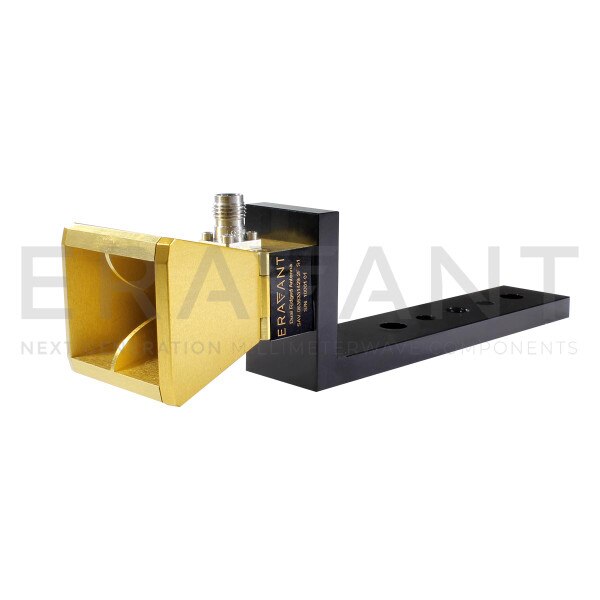

SAV-0636731429-VF-S1 is a dual-ridged broadband horn antenna that operates from 6 to 67 GHz. The antenna offers a typical gain of 14 dBi and a typical 3 dB beamwidth of 29° on both the E-plane and H-plane, respectively. The antenna supports linear polarized waveforms. The antenna includes a mounting plate with a 1/4-20 threaded hole and various other mounting holes for flexible mounting capacity. The RF port is equipped with a female 1.85 mm (V) connector.
