Broadband Dual-Polarized Quad-Ridged Horn

14 dBi Gain, 6 to 24.5 GHz, 25 dB Isolation, SMA (F)
SKU:SAV-0632531431-SF-S1-QR
Availability:IN STOCKPlease contact us if you need more units than what is available online.
Select up to 4 products to compare.
Select up to 4 products to compare.
This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-QR.
A 2D pattern measurement test is offered under service number FTA-0400PATT-QR.

CLICK HERE to read more about our antenna measurement capabilities.

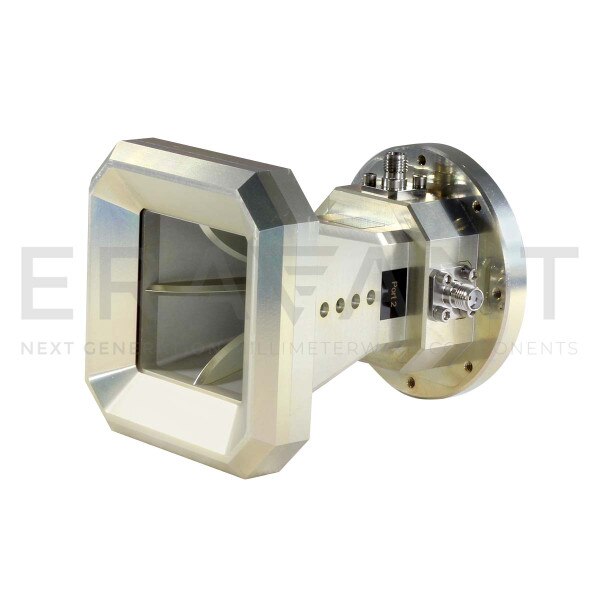

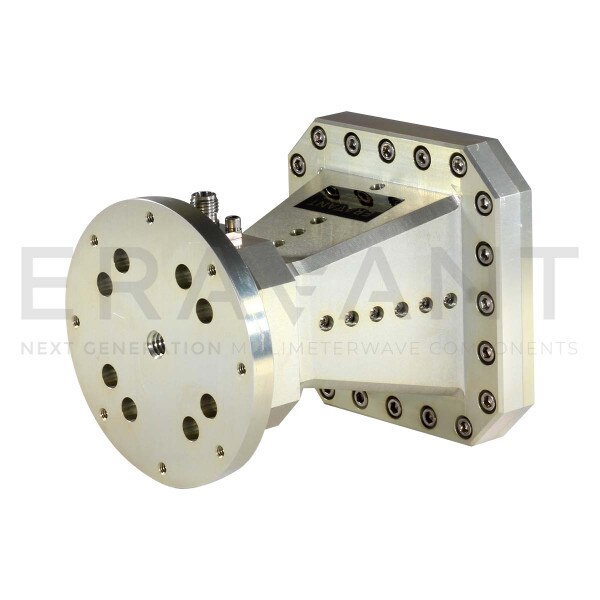

SAV-0632531431-SF-S1-QR is a quad-ridged horn antenna that operates from 6 to 24.5 GHz. The antenna offers a typical gain of 14 dBi and a nominal 3 dB beamwidth of 26° for the E-plane and 36° for the Hplane, respectively. The antenna supports both circular and linear polarized waveforms. The antenna features eight 4-40 threaded holes and one 1/4-20 threaded hole for mounting. The antenna ports are two female SMA connectors. A weather resistant configuration with radome is available under the model SAV-0632531431-SF-S1-QR-WR.
ECCN: EAR99
    Login to view pricing

    Bulk Pricing

    Login to view pricing

    Technical Details

    Minimum Frequency6 GHz
    Maximum Frequency24.5 GHz
    Gain14 dbi
    3 dB Beamwidth, E-plane26°
    3 dB Beamwidth, H-plane36°
    Isolation25 dB
    Return Loss8 dB
    Horizontal and Vertical PortSMA (F)
