WR-06 Waveguide Bandpass Filter

138 to 142 GHz Passband, 40 dB Rejection from DC to 134 GHz and 146 to 170 GHz, D-Band
Availability:IN STOCKPlease contact us if you need more units than what is available online.

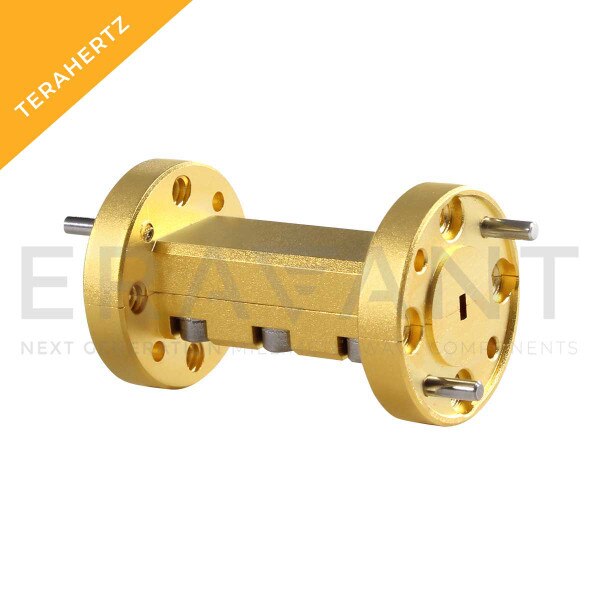

SWF-14404340-06-B1 is an D band waveguide bandpass filter with a passband frequency of 138 to 142 GHz and rejection frequencies from DC to 134 GHz and 146 to 170 GHz. The nominal insertion loss of the bandpass filter is 2.5 dB and the typical rejection is 40 dB. Since both low end and high end cut off frequencies can be selected by modifying the design, custom designs are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Passband Frequency138 GHz
Maximum Passband Frequency142 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side134 GHz
Minimum Rejection Frequency, High Side146 GHz
Maximum Rejection Frequency, High Side170 GHz
Rejection40 dB
Waveguide PortWR-06 Waveguide
