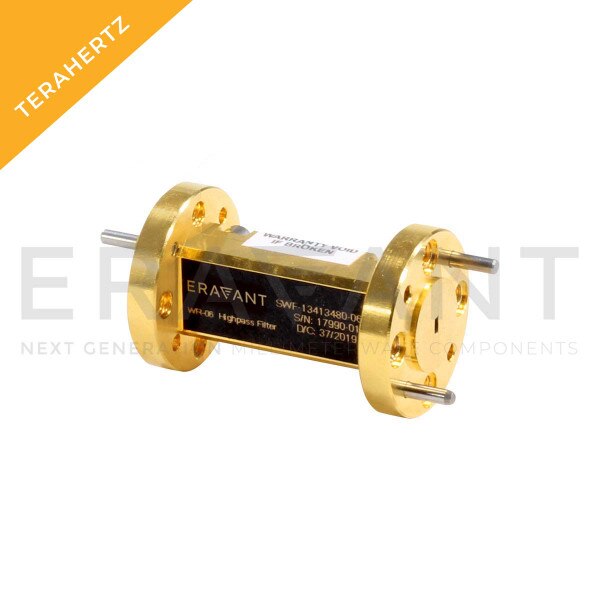

WR-06 Waveguide Highpass Filter

130 GHz and Higher Passband, 80 dB Rejection from DC to 126 GHz, D-Band
SKU:SWF-13413480-06-H1
Availability:1 Week ARO
SWF-13413480-06-H1 is a D band waveguide highpass filter with a passband frequency of 130 GHz and higher and a rejection frequency from DC to 126 GHz. The filter provides a nominal insertion loss of 2.5 dB in its passband and a typical rejection of 80 dB at 126 GHz and below. Because the passband frequency can be set by modifying the design, other highpass filters with various passbands are offered under different model numbers. For quantities above 10 pieces, please contact us or call (424) 757-0168.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$2,450.00
5 - 9$2,205.00
10 - 24$1,984.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency130 GHz
Passband Insertion Loss2.5 dB
Minimum Rejection FrequencyDC
Maximum Rejection Frequency126 GHz
Rejection80 dB
Waveguide PortWR-06 Waveguide
