U-Band Scalar Feed Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0670GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0670PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

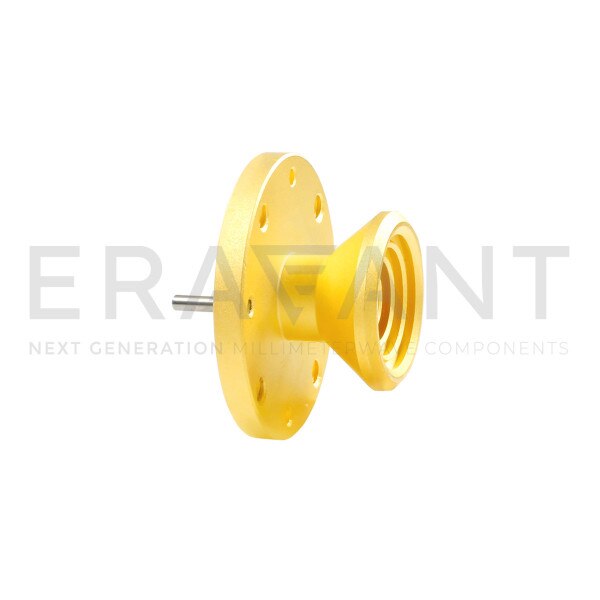

SAF-4036031340-219-S1 is a WR-19 scalar feed horn antenna assembly that covers several popular 5G bands in the frequency range of 40 to 60 GHz. At center frequency, the horn antenna exhibits 13 dBi nominal gain and a typical half power beamwidth of 40 degrees. The antenna has a return loss of 20 dB, and -25 dB side lobe levels on the E-Plane and H-Plane. The antenna is equipped with a ظ0.219" circular waveguide with a UG-383/U-M flange.
