SMA Coaxial Bandpass Filter

13.8 to 15.2 GHz, 60 dB Rejection

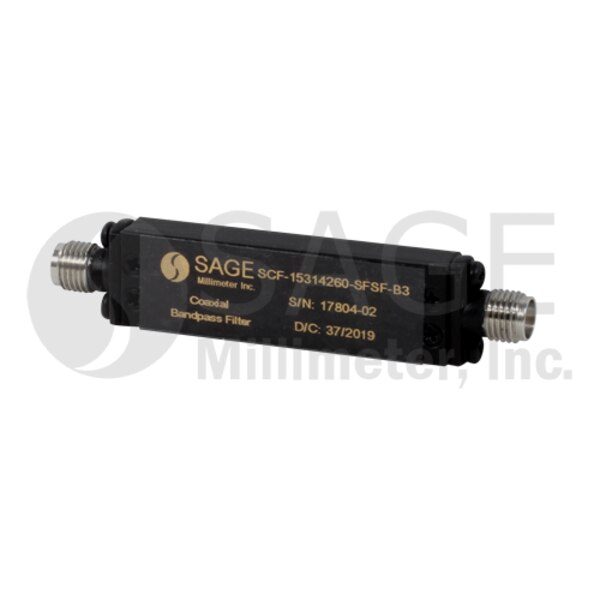

SCF-15314260-SFSF-B3 is a coaxial bandpass filter with a passband frequency of 13.8 to 15.2 GHz. The typical insertion loss of the bandpass filter is 0.8 dB and the passband ripple is ±0.3 dB. The rejection frequencies are 12 GHz or less and 17 GHz or higher. The typical rejection is 60 dB and the typical passband return loss of the filter is 18 dB. The RF connectors of the the filter are SMA Female connectors. Other configurations are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Passband Frequency13.8 GHz
Maximum Passband Frequency15.2 GHz
Low Side Rejection60 dB
High Side Rejection60 dB
Return Loss18 dB
Insertion Loss0.8 dB
Impedance50 Ohms
RF PortsSMA (F)
