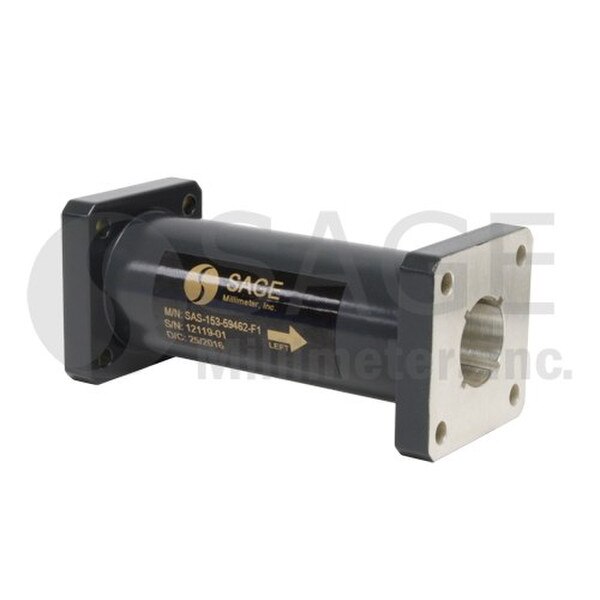

Ku-Band Linear to Circular Polarizer

12.4 to 18 GHz, 1.2 Axial Ratio, 0.594" Diameter Circular Waveguide
SKU:SAS-153-59462-F1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAS-153-59462-F1 is a Ku band, linear to circular polarizer that operates to cover the waveguide bandwidth from 12.4 to 18 GHz. The polarizer offers a typical insertion loss of 0.5 dB, a typical axial ratio of 1.2, and a typical return loss of 15 dB. The polarizer is fixed and can be used for either right-handed or left-handed polarization based on the direction of the input signal. The polarizer is often combined with Eravants’s rectangular to circular waveguide transition (SWT-62594-SA), Ku band conical horn antenna (SAC-2309-594-M2) and scalar feed horn antenna (SAF-1331831725-594-S1) for various system applications.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,650.00
5 - 9 $1,485.00
10 - 24 $1,336.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency15.2 GHz
Bandwidth±2.8 GHz
Insertion Loss0.5 dB
Axial Ratio1.2
Return Loss15 dB
Input/Output0.594" Diameter Circular Waveguide
