Ku-Band Conical Horn Antenna

23 dBi Gain, 13.4 to 18 GHz, 0.594" Diameter Circular Waveguide
SKU:SAC-2309-594-M2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

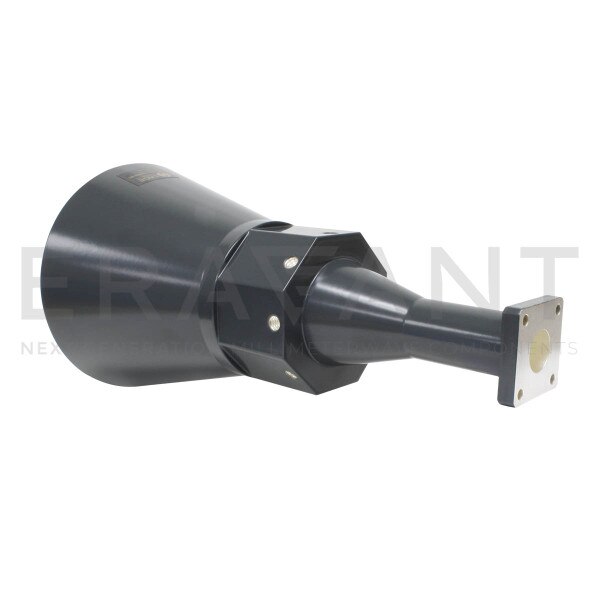

SAC-2309-594-M2 is a conical horn antenna that operates from 13.4 GHz to 18 GHz. The antenna offers 23 dBi nominal gain, 9 degrees half power beamwidth and -15 dB typical sidelobe level at center frequency. The conical horn antenna can support linear and circular polarization. The input of this antenna is a 0.594” diameter circular waveguide with UG419/U flange. The antenna features a built-in mounting bracket that is compatible with a standard camera tripod.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,400.00
5 - 9 $1,260.00
10 - 24 $1,134.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency13.4 GHz
Maximum Frequency18 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane
Return Loss21 dB
PolarizationLinear and Circular
Antenna Port0.594" Dia Circular WG
